Understanding PPS Fast Charging: What It Is and How It Works

Written by Jharwin Barrozo

Published - 3 min read

Illustration of a PPS chip symbolically powering three fast charging technologies—PPS, Power Delivery (PD), and Quick Charge (QC)—on a dark background.

Fast charging has come a long way—and one of the most advanced technologies in this space is Programmable Power Supply (PPS). If you’ve ever wondered why your device charges faster with some cables and adapters than others, PPS might be the answer.

Let’s break down what PPS fast charging is, how it compares to other standards like Power Delivery (PD) and Qualcomm® Quick Charge, and which chips are typically used in devices that support it.

🚀 What is PPS Fast Charging?

PPS (Programmable Power Supply) is an extension of the USB Power Delivery 3.0 (USB PD 3.0) standard, introduced by the USB Implementers Forum (USB-IF) in 2017.

What makes PPS unique? Unlike traditional fast charging that delivers a fixed voltage, PPS dynamically adjusts voltage and current based on what your device actually needs at any given moment. This real-time communication between your device and charger leads to:

  • Better energy efficiency
  • Lower heat generation
  • Extended battery lifespan

⚡ PPS vs PD vs Quick Charge: What's the Difference?

PPS (Programmable Power Supply)

  • Adjusts voltage in 20mV steps and current in 50mA steps
  • Reduces conversion losses and heat buildup
  • Great for high-efficiency, high-capacity devices (phones, tablets, laptops)

PD (Power Delivery)

  • Offers fixed voltage profiles (5V, 9V, 15V, and 20V, plus 28V, 36V, and 48V with PD 3.1 Extended Power Range)
  • Can deliver up to 240W of power
  • Supported by many USB-C smartphones, tablets, and laptops
  • Perfect for Apple®, Samsung®, Google® devices with USB-C

Quick Charge (QC)

  • Developed by Qualcomm®
  • Powers devices faster using higher voltages (QC 3.0, QC 4+, QC 5)
  • QC 3.0: Up to 80% in 35 minutes
  • QC 5: Up to 50% in 5 minutes (supports USB PD too!)

📱 Devices That Support PPS

PPS support is becoming more widespread in premium devices. Here are a few well-known examples:

  • Samsung Galaxy® S20 / S21 / S22 Series
  • Samsung Note® 10 / Note 20
  • Google Pixel® 6 and above
  • Select laptops (like newer Chromebooks)
  • USB PD-compatible power banks and wall chargers

🔌 Commonly Used Chips That Support PPS / PD / QC

Here are some widely used ICs (Integrated Circuits) that power these fast-charging protocols:

Chips for PPS & USB PD and Quick Charge

💡 Final Thoughts

PPS fast charging isn’t just about speed—it’s about smarter, more efficient charging. By dynamically negotiating voltage and current, PPS reduces heat, protects battery health, and delivers a better experience for power users.

If you're designing or sourcing power solutions for modern electronics, make sure your charger and cable support PPS. And if you're a developer, integrating chips like the STUSB4761 or TPS25750 can give your products that next-gen charging edge.

Want help selecting a chip for your power design or building your own PPS-compatible device? Let’s build it together.

About the author

Jharwin Barrozo

Electronics Engineer at Flux

Jharwin is an electronics engineer mainly focused on satellites. He built his own ground station using Flux to monitor RF activities on the International Space Station. Find him on Flux @jharwinbarrozo

More in PCB Design & Engineering Fundamentals

What Is a PCB? A Beginner's Guide to Printed Circuit Board Design

What Is a PCB? A Beginner's Guide to Printed Circuit Board Design

12 Min Read
A simplified schematic showing capacitors (C1, C2, C3, C4) and voltage regulator(U1) connected to input voltage (VCC) and GND rails with output voltage (VOUT).

What is Schematic Design? All You Need to Know

10 Min Read
A detailed cross-section illustration of a multilayer PCB stackup showing copper layers, prepreg, and core materials

PCB Stackup Design: How to Build the Right Layer Structure

7 Min Read
Best PCB Routing Techniques for Clean Circuit Board Layouts

Best PCB Routing Techniques for Clean Circuit Board Layouts

8 Min Read
A beginner-friendly guide to reading PCB schematics covering common symbols, nets, and signal flow

How to Read PCB Schematics: A Beginner-Friendly Guide

7 Min Read
A guide to PCB schematic best practices for creating clean, readable, and maintainable circuit diagrams

PCB Schematic Best Practices for Clean Circuit Design

8 Min Read
A guide to schematic capture explaining how engineers create circuit diagrams for PCB design

Schematic Capture Explained: How Engineers Create Circuit Diagrams

7 Min Read
Common schematic design mistakes and how to avoid them in PCB design workflows

Common Schematic Design Mistakes and How to Avoid Them

5 Min Read
PCB netlists explained showing how schematics connect to PCB layouts through netlist generation and import

PCB Netlists Explained: How Schematics Connect to Layouts

7 Min Read
A microcontroller with secondary MCU and couple of passive components shown in a PCB designing tool, Flux. Rastnest or lines are visible indicating their connection between components called Netlist.

What Is a Netlist? Understanding the Basics of Electronic Design Automation

4 Min Read
PCB symbol design best practices for clean schematics showing symbol creation and library management

PCB Symbol Design: Best Practices for Clean Schematics

6 Min Read
A beautiful parametrically programmable schematic symbol of a microcontroller chip created in Flux

Making Parts Just Got Easier: Introducing Parametric Symbols

3 Min Read
The image depicts a screenshot from an application called "Flux," which appears to be an all-in-one, end-to-end PCB (Printed Circuit Board) designing tool for electronics engineers. The screenshot shows a complex electrical schematic diagram, featuring a variety of electronic components and their connections. The diagram includes integrated circuits, resistors, capacitors, sensors, microcontrollers and various other symbols that represent the components of a circuit, laid out in a detailed and organized manner. The background of the app has a cosmic or nebula-like purple design, giving the technical diagram an aesthetically pleasing contrast against the celestial backdrop.

Create Satisfying Schematics with these Updates

3 Min Read
An illustrated guide to electronic circuit design showing the workflow from schematics to PCB layout

Electronic Circuit Design Explained: From Schematics to PCB Layout

8 Min Read
Printed circuit board shined with light at the other side, showing only pcb traces, holes and pad shapes.

Designing PCBs: What Are the Essential Steps

4 Min Read
Hardware design workflow from schematic capture to manufacturing showing the complete PCB development lifecycle

Hardware Design Workflow: From Schematic Capture to Manufacturing

8 Min Read
Functional block diagram of an electronic project showing the signal conditioning stage and wireless interface stage

What Is a Functional Block Diagram and Why Is It Critical in System Design

4 Min Read
PCB layout in 2D view; showing the pads, vias and traces

PCB Design Basics: What You Need to Know Before You Start

14 Min Read
Type of Diodes and Their Electronic Symbols; Shockley Diode, Zener Diode, PN Junction Diode, and Schottky Diode

Diode Symbols: How to Identify Common Diodes

4 Min Read
Flux logo and Ultra Librarian logo about to combine in a vast space, signifying a partnership

Ultra Librarian joins Flux to Take the Hard out of Hardware

4 Min Read
Scattered million of electronic components in space, with 800k super bright text at the center. This is the current number of components available at Flux today which is the largest electronic part library.

Flux Now Has the World's Largest eCAD Part Library

4 Min Read
Capacitor Symbols Explained: Types, Polarity, and Schematic Use

Capacitor Symbols Explained: Types, Polarity, and Schematic Use

8 Min Read
Annotated schematic symbols for MOSFETs and bipolar transistors, including NMOS, PMOS, NPN, and PNP devices.

MOSFET and Transistor Symbols Explained: NMOS, PMOS, NPN, and PNP

6 Min Read
Illustration showing a PDF schematic being converted into an editable PCB design with AI assistance.

How to Convert PDF Schematics into Editable EDA Files Using AI

5 Min Read
High speed pcb design traces glowing over a complex pcb board. Visible are serpentine length-matched traces.

Crosstalk, Reflections, and the Real Challenges of Signal Integrity

2 Min Read
What Is Signal Integrity in PCB Design? A Practical Guide

What Is Signal Integrity in PCB Design? A Practical Guide

22 Min Read
High-Speed PCB Design: Layout Rules, Signal Integrity, and Routing Best Practices

High-Speed PCB Design: Layout Rules, Signal Integrity, and Routing Best Practices

11 Min Read
A detailed illustration of EMI and EMC concepts in PCB design showing shielding, grounding, and interference reduction techniques

EMI/EMC in PCB Design: How to Reduce Interference

11 Min Read
Illustration for PCB EMI Problems: Causes and Solutions

PCB EMI Problems: Causes and Solutions

9 Min Read
Differential Pair Routing Guidelines and Controlled Impedance Best Practices

Differential Pair Routing Guidelines and Controlled Impedance Best Practices

10 Min Read
An illustration of PCB impedance control concepts showing trace geometry, dielectric layers, and signal integrity

PCB Impedance Control: A Practical Guide for Engineers

7 Min Read
Introducing Curved Traces in Flux

Introducing Curved Traces in Flux

3 Min Read
Illustration for Analog vs Digital PCB Design: Key Differences Explained

Analog vs Digital PCB Design: Key Differences Explained

6 Min Read
CLC pi filter schematic with two shunt capacitors flanking a series inductor between VIN and VOUT

Pi Filters Explained: Design, Components & Applications

8 Min Read
RS485 electrical pin out and it's actual physical connector in 3D

RS485 Explained: Wiring, Specifications, and Applications

6 Min Read
What is RS232?

What is RS232?

5 Min Read
SPI vs. I2C: Which Communication Protocol Should You Use?

SPI vs. I2C: Which Communication Protocol Should You Use?

7 Min Read
RJ45 Connectors: Pinouts, Categories, Uses, and Testing

RJ45 Connectors: Pinouts, Categories, Uses, and Testing

6 Min Read
CO2 Sensor Technology: How These Devices Detect Carbon Dioxide

CO2 Sensor Technology: How These Devices Detect Carbon Dioxide

5 Min Read
Hall Effect Joysticks: How They Work, Benefits, and Uses

Hall Effect Joysticks: How They Work, Benefits, and Uses

6 Min Read
A close up of a crystal oscillator on an electronic printed circuit board.

What Is an Oscillator? Beginner's Guide to Oscillating Circuits

3 Min Read
A guide to flexible PCB design covering materials, layout rules, and applications for modern electronics

Flexible PCB Design Guide: Materials, Layout, and Applications

7 Min Read
Illustration for Rigid-Flex PCB Design: Benefits, Challenges, and Layout Tips

Rigid-Flex PCB Design: Benefits, Challenges, and Layout Tips

7 Min Read
Illustration of printed PCB trace antennas with RF routing, ground-plane keepouts, and radiating elements.

The RF Engineer's Guide to Designing Printed Trace Antennas

6 Min Read
Illustration of SMA connectors and RF PCB mounting styles used for high-frequency signal connections.

SMA Connectors Explained: Types, Applications, and PCB Design Considerations

7 Min Read
RC low-pass filter concept art showing a noisy input waveform smoothed into a clean sine wave over a PCB

RC Low-Pass Filter: Formula, Cutoff Frequency & Design

10 Min Read
Different packages of voltage regulators and its common reference design

Decoding Voltage Regulators: How They Work in Everyday Electronics

5 Min Read
Voltage Regulators: How They Work, Types, and Applications

Voltage Regulators: How They Work, Types, and Applications

4 Min Read
PCB Design for Buck Switching Converter Best Practices

Buck Converter Design: Components, PCB Layout, and Formulas

7 Min Read

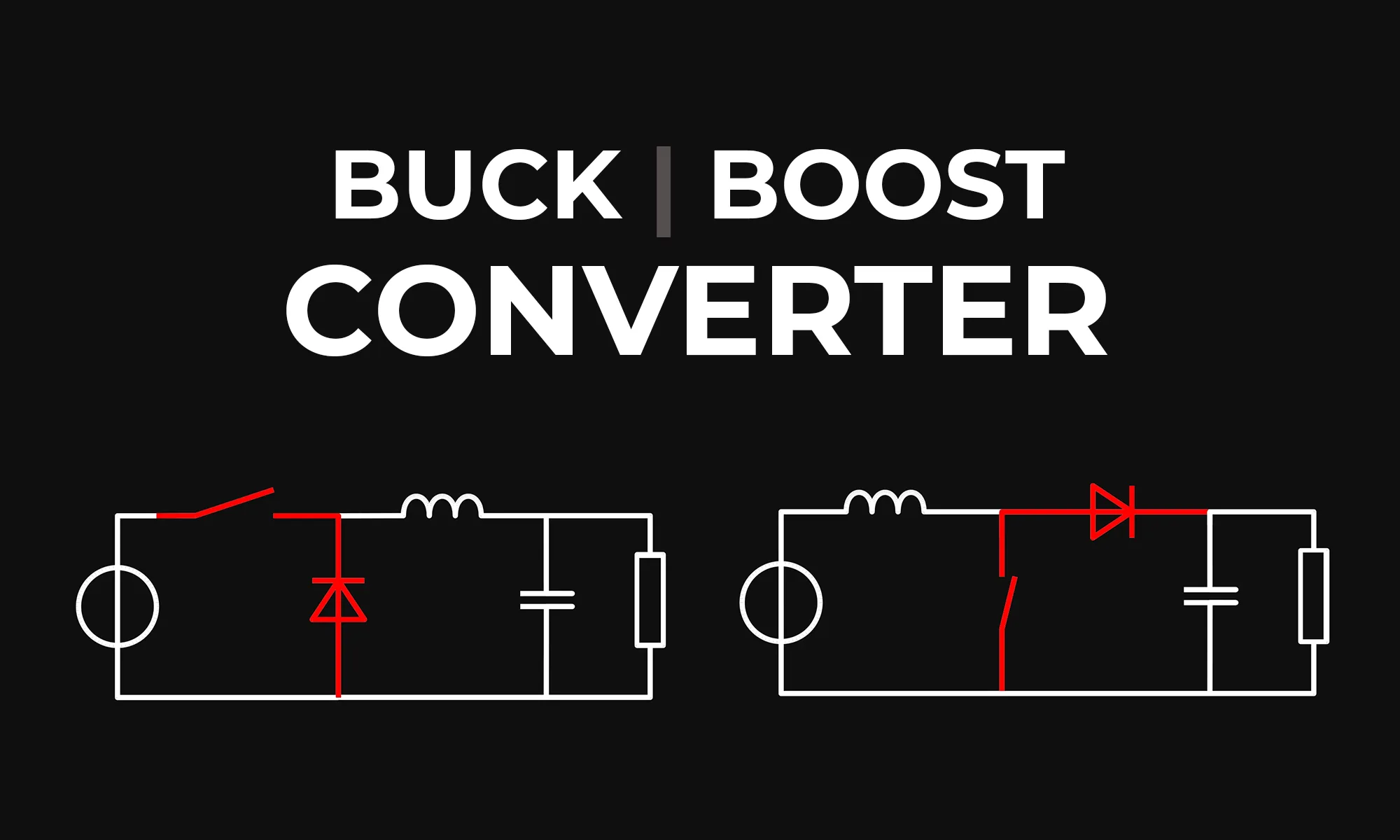

Side by side high level schematic diagram of a buck and boost converter with their roles in power systems
