PCB Thermal Management: Analysis and Design Best Practices

All electronic devices and circuits produce excess heat, necessitating effective thermal management to enhance reliability and avoid early failure. The heat output equals the power input, assuming no other energy interactions. Various cooling techniques are used, such as different types of heat sinks, thermoelectric coolers, forced air systems and fans, heat pipes, and thermal management on PCB layout level.

Current flowing through resistive elements produces heat, and that heat must move through the board, interfaces, and surrounding air. PCB thermal analysis connects the electrical load to the resulting temperature rise so designers can evaluate materials, copper areas, component placement, and cooling methods before fabrication.

The simplest way to dissipate heat would be through thermal vias to the cooling system (heat sink or heat pipes). The heat sink draws heat away from the PCB to fins that provide a larger surface area for faster heat dissipation.

PCB Thermal Analysis Fundamentals

Thermal Equivalent Circuits

Thermal Equivalent Circuits are an analogy of electrical circuits to provide an estimation of the flow of heat in a design. They work because the underlying equations for the transfer of thermal energy and electrical energy are similar enough. With the analogies, we can calculate the heat transfer within the PCB.

Thermal Equivalent Analogy of Electrical Circuits

Equivalent Equations

I = V1-V2/R => Q = T1-T2/R_t

Where:
I is the current (A)
V is the voltage (V)
R is the electrical resistance
Q is the heat flow (W)
T is the junction temperature (°C)
R_t is the thermal resistance (°C/W)

Similarly, equivalent thermal resistance in series and parallel also follows the same equations for electrical resistance.

Component Thermal Impedance

Thermal impedance measures the sum of thermal resistance and thermal contact resistance of a material. This value can be found in the component datasheet for integrated circuits and ranges from 20 °C/W for low-power amplifiers or ICs, to as high as ~200 °C/W for powerful microprocessors. The operating temperature can be determined by multiplying the component’s power consumption by its thermal impedance.

T = Z*P

Where:
T is the component temperature (°C).
P is the power usage of the component (W)
Z is the thermal impedance (°C/W)

Thermal Management Considerations

• Materials and Temperature Ratings
• Use PCB substrate material with appropriate ratings for your operating environment.
• FR-4, the most common PCB material, is rated to operate up to 130 degrees.
• Consider alternatives like Shengyi S1000-2 or ARLON 85N for higher temperature operations.

How to Increase PCB Thermal Conductivity

When a PCB dissipates substantial heat, a substrate with higher thermal conductivity can improve heat flow away from critical components. Ceramic materials, metal-core constructions, and additional copper beneath hot devices can all reduce thermal resistance, but each option must be balanced against mechanical stress, cost, and manufacturing constraints.

When designing PCBs, the importance of effective thermal management cannot be overstated. High-power components generate significant heat, and without proper dissipation, the performance and longevity of the circuit boards can be compromised. One effective method to manage this heat is by using a heat sink. A heat sink helps to draw heat away from critical components, improving the overall thermal performance of the PCB.

Thermal relief is also design feature used in electronic circuit boards to manage heat dissipation from components that generate significant heat during operation. It helps to prevent overheating and ensures the reliability and longevity of the components.

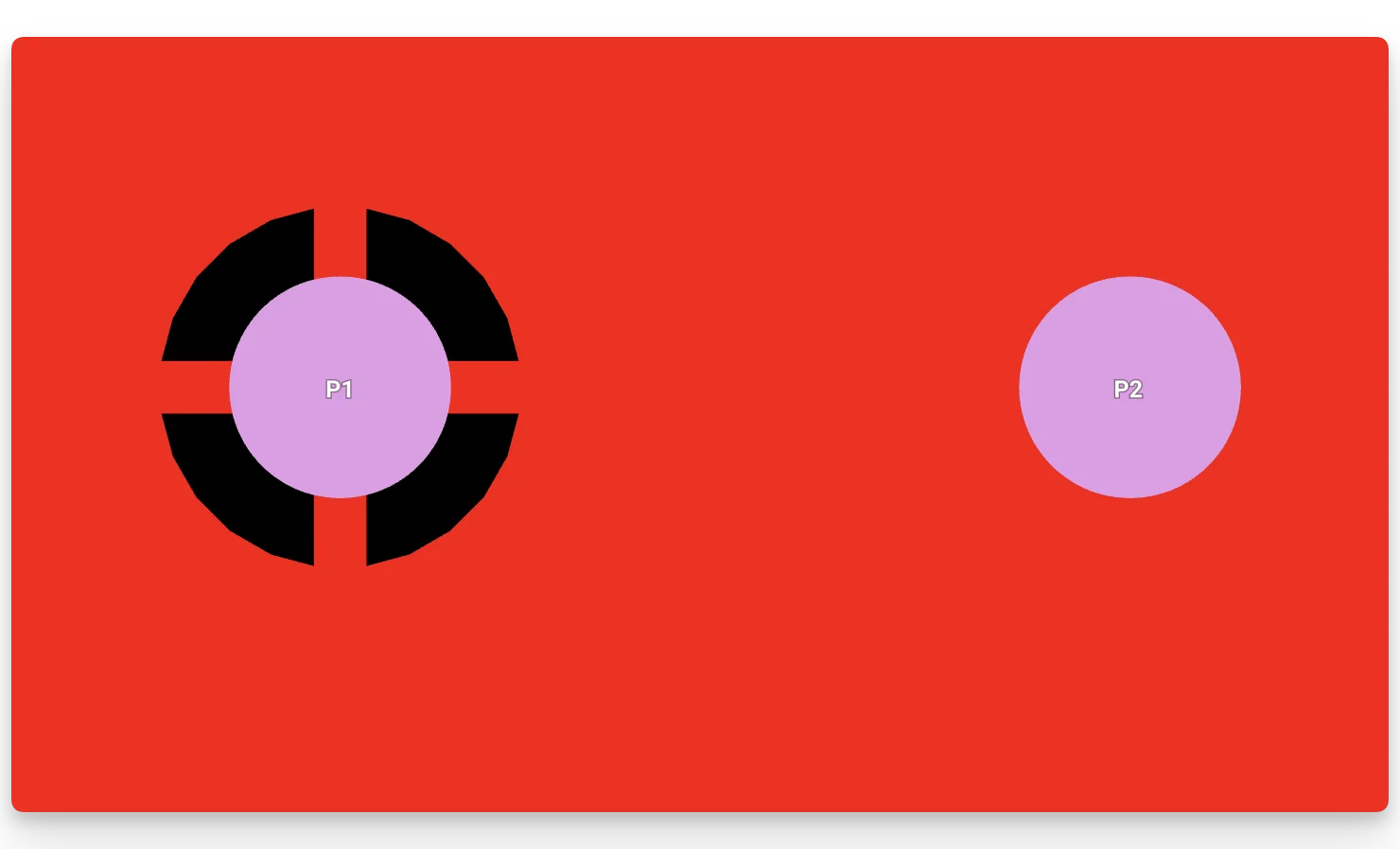

There are two main configurations for thermal relief:

1. Relief Connect: This option creates an air gap between the thermal pad and the fill material, connecting them with conductors. This configuration allows for some thermal isolation, which can be beneficial in certain applications where you want to limit heat transfer.
2. Direct Connect: This option removes the air gap, allowing the thermal pad and the fill material to be in full contact. This configuration provides better thermal conductivity, which is ideal for components that need to dissipate heat quickly.

PCBs are the backbone of modern electronics, and ensuring they operate within safe thermal limits is crucial. Circuit boards that overheat can lead to component failure and reduced reliability. This is why thermal resistance and thermal impedance are important parameters to consider in PCB design. By carefully selecting materials and employing efficient cooling techniques, such as integrating cooling fans, the thermal performance of PCBs can be significantly enhanced.

Thermal Design Tips for Sensitive and High-Power Components

• Place temperature-sensitive components in cooler areas, away from high-heat producers like frequency transistors and microprocessors.
• Position passive components near the edges and high-powered ones in the center for even temperature distribution.
• Spread high-power components out to prevent hotspots.
• Use metal-plated holes and short leads for better heat transfer. Choose components with suitable temperature ratings and larger cross-sectional areas for efficient heat dissipation.
• Use mounting screws to enhance thermal distribution.
• Incorporate thermal vias with grounded polygon pours beneath heat-generating components.

Fan and Heat Sink Considerations

• Thermal Interface Materials: Utilize thermal pads and pastes to enhance heat transfer from components to heat sinks or enclosure walls.
• Fan Placement: Position fans directly on hot components for efficient cooling or mount larger fans on the enclosure for quieter and more energy-efficient heat removal.
• Heat Sink Design: Customize heat sink designs for maximum convective cooling, ensuring they are compatible with the airflow provided by the fan placement.
• Enclosure Integration: Attach the PCB directly to a metal enclosure with thermal interface material to enhance heat transfer to the surrounding environment.

Other Considerations for Routing Traces

• Trace Design: Keep power traces short and wide to reduce heat generation. Round corners and avoid right angles to minimize inductance and noise.
• Ground and Power Planes: Maximize the size of copper planes to act as heat sinks and connect them to external layers for improved heat transfer.
• Thermal Vias: Use them to dissipate heat from multi-layer boards and internal copper layers.
• Standards Compliance: Follow IPC, UL, and IEC standards for current density and conductor spacing to ensure thermal reliability.

PCB Thermal Simulation Benefits

PCB thermal simulation enables designers to predict thermal management issues, ensuring optimal heat dissipation. By simulating different layouts and thermal solutions, designers can avoid costly physical iterations and achieve a thermally efficient design from the outset.

Key Benefits of PCB Thermal Simulation

• Identify thermal hotspots, thermal interferences
• Analyze airflow, temperature distribution, heat dissipation and heat release patterns.
• Evaluate the configuration of thermal vias
• Assess the heat sink's performance and different cooling technique efficiency
• Optimize the PCB layout cost-effectively.

Thermally conductive materials, such as certain ceramics, can greatly improve the heat dissipation capabilities of circuit boards. Additionally, incorporating thermal vias and using thermally conductive paste can further aid in managing the heat generated by high-power components. Cooling fans are another essential element in thermal management, ensuring that heat is effectively removed from the PCB and dissipated into the surrounding environment.

PCB design requires careful consideration of thermal management techniques. By utilizing heat sinks, thermally conductive materials, and cooling fans, designers can create circuit boards that operate efficiently and reliably, even under demanding conditions. Proper thermal analysis and simulation are key to achieving optimal performance and preventing overheating issues in PCBs.
