What Is Solder Mask? Materials, Colors, and PCB Design Rules

Early printed circuit boards (PCBs) consisted of bare copper traces routed across an insulating substrate. During wave soldering operations, the exposed copper frequently oxidized or allowed molten solder to bridge across adjacent traces, causing catastrophic short circuits. To prevent these failures, manufacturers introduced liquid polymer coatings that hardened into a protective insulating layer. This coating became known as solder mask. Today, precise solder mask application helps determine whether a board can withstand high-density automated assembly.

Key Takeaways

• A PCB solder mask protects copper traces while preventing electrical shorts during the assembly phase.
• Managing solder mask clearance ensures reliable manufacturing tolerances without exposing adjacent traces.
• Understanding the difference between a solder mask vs solder paste prevents critical file export errors prior to fabrication.

What Is a Solder Mask, and What Does It Do?

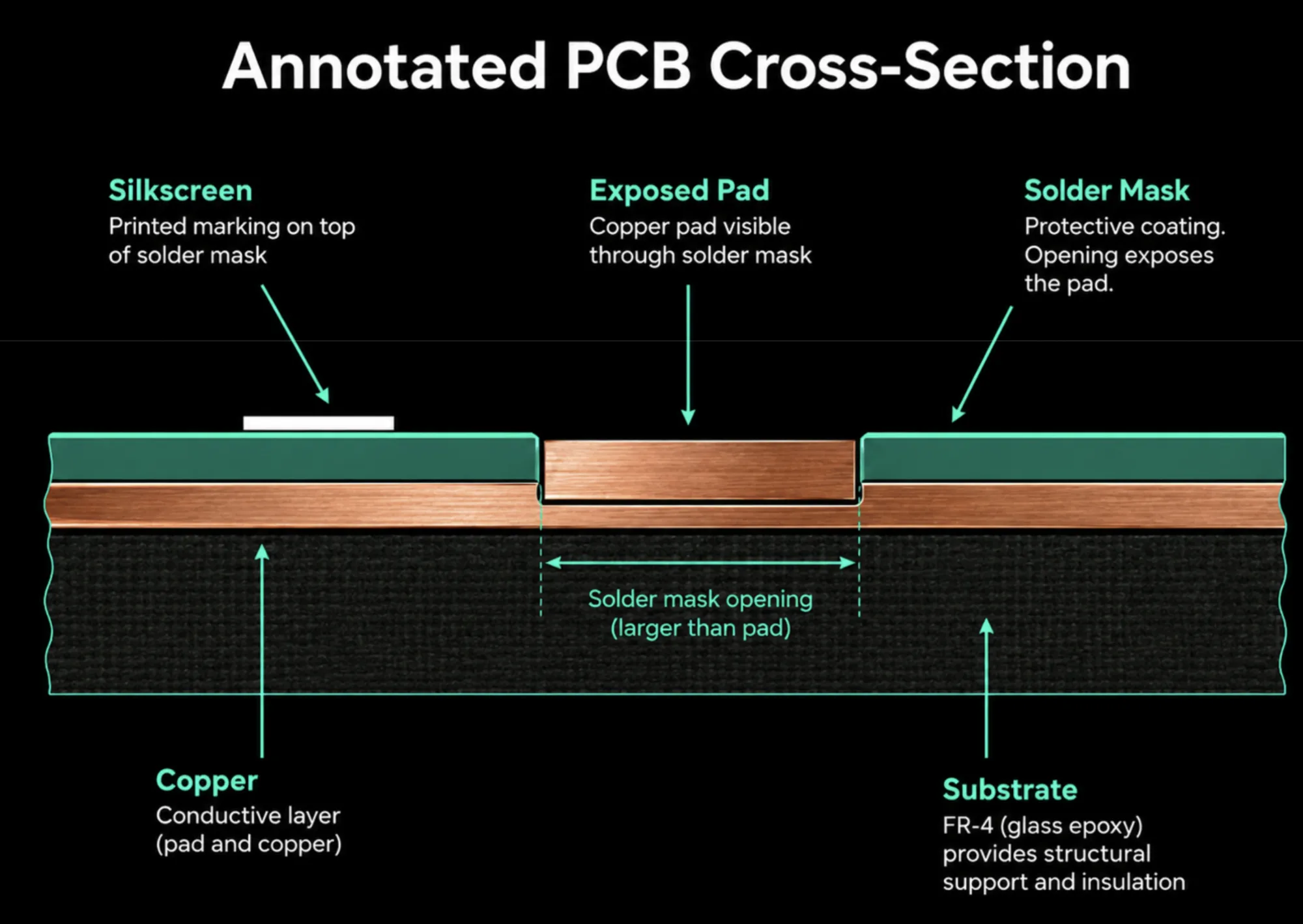

Solder mask is a protective polymer coating applied over a PCB's copper surfaces. This coating prevents oxidation, reduces accidental solder bridging, and leaves selected pads exposed for component assembly. Designers control solder mask openings, clearances, and dams to ensure the board can be fabricated and soldered reliably. Notably, a solder mask layer differs from a silkscreen (used for text labels) and solder paste (a temporary metallic bonding agent). Furthermore, such a coating does not replace proper electrical clearance rules for high-voltage isolation.

Solder Mask Openings, Clearance, Expansion, and Dams

Designing a PCB solder mask involves specific geometric definitions around every exposed copper pad.

• Solder mask opening: The designated area where the protective polymer is omitted, exposing the underlying copper pad.
• Solder mask clearance: The distance between the copper pad edge and the boundary of the surrounding polymer.
• Solder mask expansion: The distance by which the opening extends beyond the physical copper pad to account for manufacturing alignment tolerances.
• Solder mask dam: The physical strip of polymer material remaining between two closely spaced openings.

Fabrication machinery inherently possesses alignment tolerances. Consequently, openings are sized slightly larger than the copper pads. However, excessive solder mask expansion removes the protective solder mask dam between adjacent pins. Without such a barrier, molten solder easily bridges across fine-pitch IC pins during reflow.

Solder Mask-Defined vs Non-Solder Mask-Defined Pads

Footprint design relies on two primary methodologies for exposing copper pads to the assembly process.

1. Non-Solder Mask-Defined (NSMD) Pads: The physical copper pad defines the solderable area. The mask opening is larger than the pad itself, leaving a small trench around the copper edge. This configuration is often the industry standard for standard surface-mount components, offering excellent pad adhesion to the underlying fiberglass substrate.
2. Solder Mask-Defined (SMD) Pads: The mask opening is physically smaller than the underlying copper pad. The polymer overlaps the copper edges, dictating the exact area available for soldering. Engineers utilize such an approach for specific Ball Grid Array (BGA) packages and high-density layouts where pad lifting during thermal cycling presents a risk.

Solder Mask vs Solder Paste

Beginners frequently confuse solder mask vs paste mask (e.g., solder paste) export layers. Understanding the difference between solder mask vs solder paste ensures fabrication and assembly files route to the correct machinery.

• The solder mask is a permanent epoxy applied by the board fabricator.
• Conversely, solder paste is a temporary mixture of metal alloy particles and flux applied by the assembly facility through a metallic stencil. The paste melts inside a reflow oven to physically bond components to the exposed pads.

Mask and Paste Material Comparison

Solder Mask Materials, Colors, and Via Coverage

Fabricators apply different mask materials based on cost and precision requirements. Liquid Photoimageable (LPI) mask represents the standard, offering high resolution for fine-pitch components. Dry-film masks provide uniform thickness across flat surfaces, while screen-printed epoxy is a cost-effective option for low-density boards. Regarding aesthetics, traditional green remains standard because the specific chemical pigment offers optimal contrast for Automated Optical Inspection (AOI) cameras and has predictable curing properties. However, PCB solder mask colors also include black, blue, red, white, yellow, and purple. Pigment selection typically affects visual inspection contrast and curing resolution rather than electrical performance. Designers must also specify how the mask interacts with vias. Options include open vias (exposed copper), plugged vias (filled with non-conductive epoxy), filled and capped vias, and via tenting (where the polymer covers the via hole entirely to prevent shorts during wave soldering).

Common Solder Mask Design Mistakes

Poor mask design directly causes solder mask defects during the manufacturing stage. Common errors include missing openings over surface-mount pads, excessive expansion values that eliminate fine-pitch mask dams, and accidentally covering required test points with polymer.

Pre-Release Solder Mask Checklist:

How Modern PCB Tools Support Solder Mask Design

Modern PCB platforms streamline the design and verification workflow. Cloud-native tools help engineers define what is a solder mask within the stackup, validate footprint geometries, and run automated design-rule checks. By keeping footprint validation, layer management, and manufacturing outputs connected in a single collaborative environment, hardware teams catch clearance errors before initiating fabrication. Try Flux now to define precise solder mask geometry, validate footprint layers, and prepare manufacturing deliverables in a unified collaborative environment.
