PCB Enclosure Design: How to Design an Enclosure

A working circuit board still needs a housing before the hardware can be used or tested as a complete device. PCB enclosure design accounts for the board outline, component heights, connectors, mounting points, internal clearance, airflow, cable access, and assembly method.

A good enclosure design starts by considering the PCB and enclosure together. In some products, the enclosure is designed around an existing PCB; in others, the PCB must be shaped and laid out to fit within a predefined enclosure. Either way, the goal is to turn the electrical design into a physical prototype that can be printed, assembled, tested for fit, and refined before production.

Key Takeaways

• PCB enclosure design starts with the actual PCB geometry, including board dimensions, component heights, connectors, mounting holes, and keepout areas.
• 3D printing makes enclosure prototyping faster because hardware teams can test fit, assembly, and access before choosing a production process.
• Flux can create a prototype enclosure from the PCB project, which reduces the mechanical handoff between PCB design and enclosure prototyping.

What Is PCB Enclosure Design?

PCB enclosure design is the process of creating a mechanical housing around a printed circuit board. The enclosure protects the electronics, holds the PCB in a fixed position, and provides access to the parts that need to interact with the outside environment. A PCB enclosure usually needs to account for:

1. Protection from accidental contact, dust, static discharge, and other handling risks
2. Secure PCB mounting
3. Openings for connectors, buttons, switches, LEDs, displays, and sensors
4. Clearance above and around components
5. Space for cables and internal wiring
6. Assembly and disassembly
7. Airflow and heat transfer where required

Thermal requirements can affect vents, material selection, internal spacing, and component placement. The enclosure therefore needs to work with the overall PCB thermal management strategy. Prototype and production enclosures also solve different problems.

Prototype vs. Production PCB Enclosures

This guide focuses mainly on the prototype enclosure. Prototype housings help hardware teams test the mechanical design before committing to a production process.

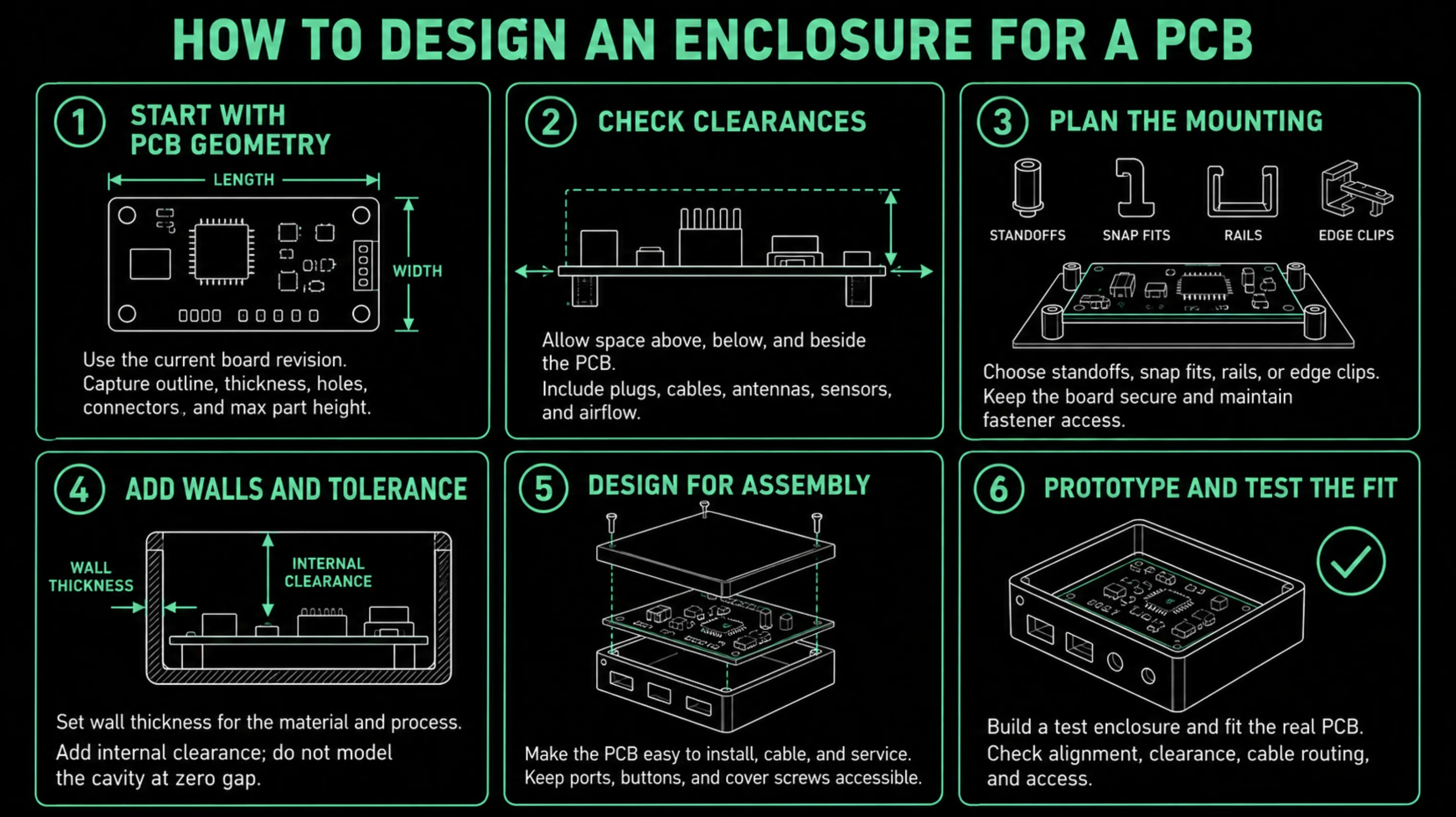

How to Design an Enclosure for a PCB

Learning how to design an enclosure for a PCB starts with a simple rule: the enclosure should follow the board. A typical workflow is:

PCB → mechanical requirements → enclosure design → fabrication → assembly → fit testing

The process starts with accurate board data and ends with a physical test. Each step checks whether the electrical and mechanical parts work together.

How To Design An Enclosure For A PCB

1. Start With the PCB Geometry

The PCB geometry determines the basic limits of the enclosure. Start with the current board revision rather than dimensions copied from an early drawing or specification.

Collect the following information:

• Board length and width
• Board outline
• Curves, slots, chamfers, and cutouts
• PCB thickness
• Mounting hole locations
• Component locations
• Maximum component heights
• Connector positions
• Components that extend past the board edge
• Mechanical keepout areas

Accurate component models also matter. An incorrect PCB footprint design can create a mechanical collision even when the board outline is correct. The enclosure should match the actual PCB geometry. Approximate dimensions can create problems later when ports, bosses, and internal walls need exact alignment.

2. Determine Component and Connector Clearances

Component clearance determines how much internal space the enclosure needs. Check all parts that extend above, below, or beyond the PCB, including connectors, switches, buttons, displays, antennas, sensors, heat sinks, fans, and internal cables.

Connector openings also need enough clearance for the external plug or cable housing, not only the connector mounted on the board. Functional clearance matters too. Antennas may need open space around the radiating area, environmental sensors may need exposure to outside air, and high power components may need an airflow path. The enclosure should account for both mechanical fit and the operating requirements of each component.

3. Plan How the PCB Will Be Mounted

The mounting method controls the PCB position inside the enclosure. A well-engineered mounting strategy also prevents the board from moving when cables are connected or buttons are pressed.

Common PCB Mounting Methods

PCB standoffs are common because mounting holes provide predictable board positioning. Bosses inside the enclosure can align with those holes and support the PCB above the enclosure floor.

Fastener clearance needs attention as well. Components should not block screws or assembly tools. Metal fasteners should also stay clear of exposed electrical features where contact could create a short circuit.

4. Add Enclosure Walls and Internal Clearance

The enclosure walls can be designed once the board position and component envelope are known. Wall thickness depends on the material, fabrication method, part size, expected loads, and intended use.

Internal dimensions also need manufacturing tolerance. A PCB cavity should not match the board outline with zero clearance.

The required gap depends on:

• Printing or manufacturing process
• Material
• Printer or machine accuracy
• Surface finish
• Part orientation
• Desired type of fit

A fit check provides better information than a universal clearance value. Printer and material guidance can provide an initial range, then a physical prototype can confirm whether the selected tolerance works.

5. Design for Assembly

Assembly planning should happen before the enclosure shape is finalized. A case that fits all components can still fail if the PCB cannot be installed. Check the intended assembly sequence:

1. Place the PCB into the lower enclosure.
2. Connect any internal cables.
3. Secure the PCB.
4. Position external controls or secondary parts.
5. Attach the enclosure cover.
6. Test connector and button access.

Connector placement can change the required enclosure structure. A board with ports on opposite edges may be difficult to install in a deep one piece shell. A two part design can provide easier access around protruding components.

Cable routing also needs enough space for bends and connector bodies. Wires should not become trapped between enclosure parts during final assembly. A good custom PCB enclosure should allow normal installation without bending the PCB or forcing components through undersized openings.

6. Prototype and Test the Fit

A physical prototype checks details that can be difficult to judge from CAD alone. Fabricate the enclosure and assemble the actual PCB inside. Designers should check:

• Board fit
• Connector alignment
• Component clearance
• Mounting hole alignment
• Fastener access
• Cable routing
• Button movement
• Display and LED visibility
• Sensor exposure
• Assembly sequence
• Airflow where needed

The first enclosure often exposes small mechanical issues. For example, a connector opening may need more clearance. A cable may need additional bend space. A screw may be difficult to reach. The next enclosure revision should address those findings before the design moves toward production.

Designing a 3D Printed Enclosure for a PCB

A 3D printed enclosure for PCBs provides a practical way to test a custom housing without production tooling. The process works well during early PCB prototyping because mechanical changes can follow PCB revisions. 3D printing works especially well for fit checks and functional prototypes because each enclosure can use geometry created for a specific board.

Tolerances

Printed parts have dimensional variation. PCB cavities, connector openings, mating surfaces, and fastener features therefore need intentional clearance.

Suitable tolerance depends on the printer, process, material, geometry, and desired fit. A small test feature can help confirm dimensions before printing the complete case.

Print Orientation and Supports

Print orientation affects dimensional accuracy, surface finish, part strength, and support requirements.

Important connector openings and mounting features should be considered when choosing the print orientation. Excessive support inside narrow openings can make cleanup difficult and can affect the finished dimensions.

Wall Thickness

Wall thickness should match the enclosure size, material, printing process, and expected use. A case used for a short fit test may need less mechanical strength than a prototype that will be carried, dropped, opened repeatedly, or exposed to heat.

Material Selection

Material choice depends on the conditions the prototype will experience. Useful factors include:

• Operating temperature
• Impact resistance
• Flexibility
• Dimensional stability
• Surface finish
• Environmental exposure
• Prototype lifespan

PLA, PETG, ABS, and other printable materials have different mechanical and thermal properties. Material selection should match the purpose of the prototype rather than follow one default recommendation.

Fasteners and Snap Fits

The enclosure closure method should also match the expected number of assembly cycles. Threaded inserts can provide durable fastening points for enclosures that need frequent opening. Directly formed plastic threads may be sufficient for short term prototypes with limited assembly cycles. Snap fits can reduce hardware and simplify access. Snap fit geometry needs to account for material flexibility, print direction, repeated use, and feature thickness.

Common PCB Enclosure Design Mistakes

PCB enclosure problems often come from missed mechanical details rather than the overall enclosure shape. Traditional electrical and mechanical workflows can make these errors harder to catch. A typical hardware design workflow moves board information between PCB design and mechanical design tools. Every transfer creates another place where revisions need to stay synchronized.

Common PCB Enclosure Design Mistakes

From PCB to Prototype Enclosure With Flux

Traditional enclosure development often starts after PCB design. Board geometry needs to move into a mechanical design tool before enclosure modeling can begin. Flux reduces that handoff by adding prototype enclosure creation to the PCB project.

1. Describe the Enclosure in Chat

The enclosure workflow starts with a description of the required housing. Requirements can be entered directly in Flux.

2. Generate the Enclosure From the Board Geometry

Flux creates the prototype enclosure from the project's actual board geometry. The enclosure starts from the PCB data already present in the design instead of geometry recreated manually in another tool.

3. Preview the Enclosure in 3D

The enclosure appears as a 3D asset inside the project. Material previews help show the physical design, and individual enclosure parts can be toggled on or off during inspection.

4. Export the Enclosure for 3D Printing

The generated enclosure can be exported as a printable 3D asset. The exported design can then move into fabrication and physical fit testing.

5. Use the Generated Documentation

Flux also creates manufacturing and assembly instructions in a project document alongside the enclosure.

The enclosure workflow connects PCB design with a later stage of physical prototyping. Hardware teams can move from the board design toward an assembled prototype without starting the enclosure process from a separate blank mechanical model.

PCB Enclosure Design Checklist

Use this checklist before sending a prototype enclosure to the printer:
