MOSFET and Transistor Symbols Explained: NMOS, PMOS, NPN, and PNP

Schematic diagrams use standardized symbols to show how electrical components are connected. Understanding these symbols helps prevent pin-mapping and layout errors during PCB design. In particular, correctly interpreting bipolar junction transistors and MOSFET symbols ensures accurate netlist generation before manufacturing.

Key Takeaways

• BJTs are current-controlled devices with base, collector, and emitter terminals, while MOSFETs are voltage-controlled devices with gate, drain, and source terminals.
• Arrows help identify transistor type: NPN arrows point outward, PNP arrows point inward, while MOSFET symbol styles may vary by library.
• Always verify the datasheet to confirm the device type, physical pinout, body diode orientation, and symbol-to-footprint mapping.

BJT vs MOSFET Symbols

Bipolar Junction Transistors (BJTs) and Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) are the two primary transistor families used on PCBs. BJTs are current-controlled devices with three terminals: base, collector, and emitter. They are classified as NPN or PNP, with an arrow on the emitter that points outward for NPN transistors and inward for PNP transistors. MOSFETs are voltage-controlled devices with gate, drain, and source terminals. They are classified as NMOS or PMOS, and their schematic symbols may also include a body terminal or body diode. Because MOSFET body and arrow conventions can vary, always confirm the device type and physical pinout in the manufacturer’s datasheet.

Transistor Family Comparison

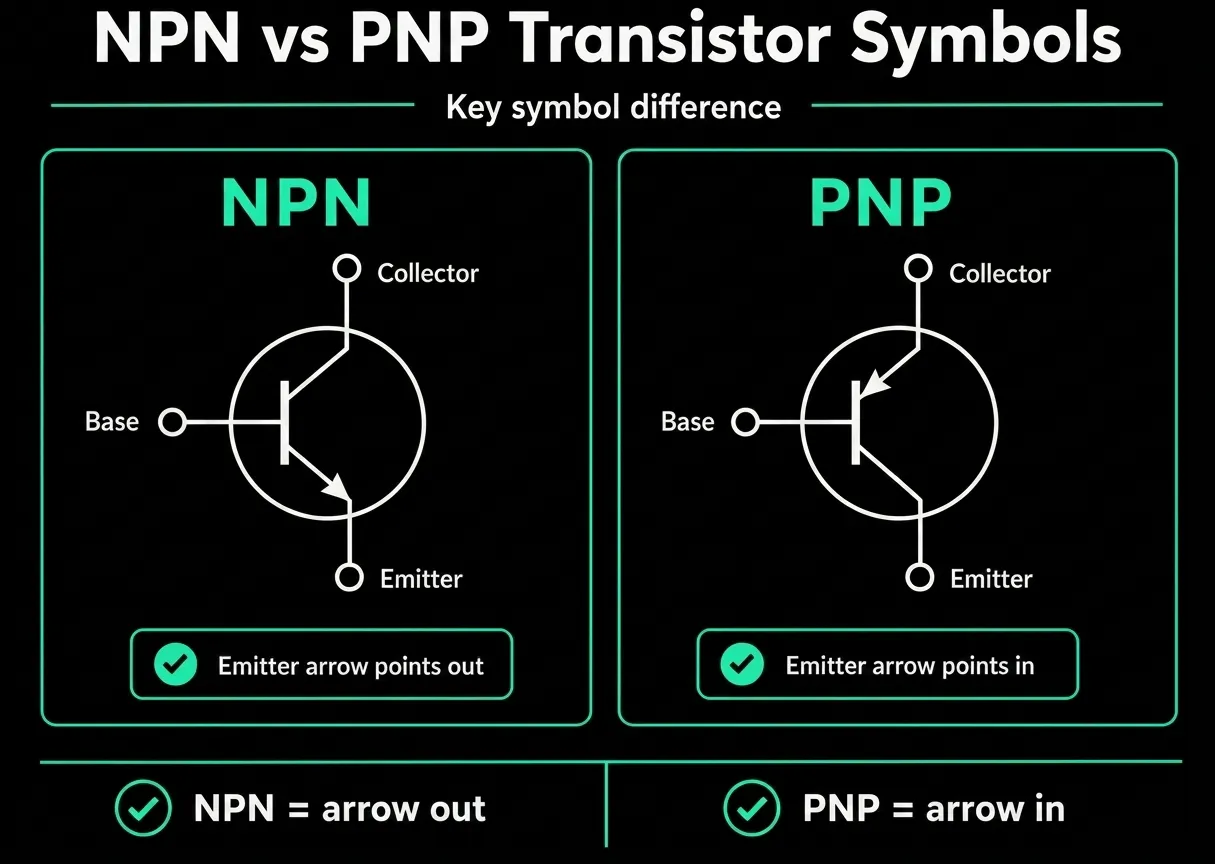

How to Read NPN and PNP Transistor Symbols

Engineers identify BJT types by observing the arrow located on the emitter terminal. The arrow indicates conventional current direction at the emitter junction.

• NPN: The NPN transistor symbol places the arrow on the emitter pointing outward. Engineers frequently utilize NPN transistors for low-side switching applications.
• PNP: The PNP transistor symbol places the arrow on the emitter pointing inward. Engineers frequently utilize PNP transistors for high-side switching applications.

Such arrows represent semiconductor physics identification rather than physical package orientation.

How to Read NMOS and PMOS Symbols

Reading a standard MOSFET graphic requires identifying the gate, drain, and source pins.

• NMOS: The NMOS symbol typically denotes a device turning on when gate voltage rises above source voltage. These components work well in low-side switching circuits.
• PMOS: The PMOS symbol denotes a device turning on when gate voltage falls below source voltage. These components work well in high-side switching circuits.

Standard libraries vary in drawing style. Some symbols omit arrows entirely, while others highlight internal semiconductor regions. Therefore, relying solely on graphical shapes without consulting component metadata introduces risk.

What the Gate, Drain, Source, Base, Collector, and Emitter Do

For BJTs, the base collector emitter symbol functions as follows:

• Base: Controls transistor operation. A relatively small base current regulates a larger current flowing between the collector and emitter.
• Collector: Carries the main controlled current and typically connects to the load or supply side of the circuit.
• Emitter: Completes the main current path and contains the arrow used to distinguish NPN from PNP transistors. The arrow shows conventional current direction at the emitter junction.

For MOSFETs, the gate source drain symbol functions as follows:

• Gate: Controls the conductive channel using the voltage between the gate and source. Because the gate is insulated, it draws very little steady-state current.
• Drain: Forms one end of the main controlled current path and commonly connects to the load.
• Source: Forms the other end of the current path and provides the reference point for the gate-to-source voltage.
• Body: Represents the internal semiconductor region. It may be connected internally to the source or shown as a separate terminal in four-terminal MOSFET symbols. The body structure also creates the MOSFET’s intrinsic body diode.

Terminal placement on a schematic does not indicate the physical pin order of the component package. Source and drain terminals are also not generally interchangeable in practical power MOSFETs because of the device’s internal construction and body-diode orientation. Always verify the symbol-to-pin mapping and package pinout in the manufacturer’s datasheet.

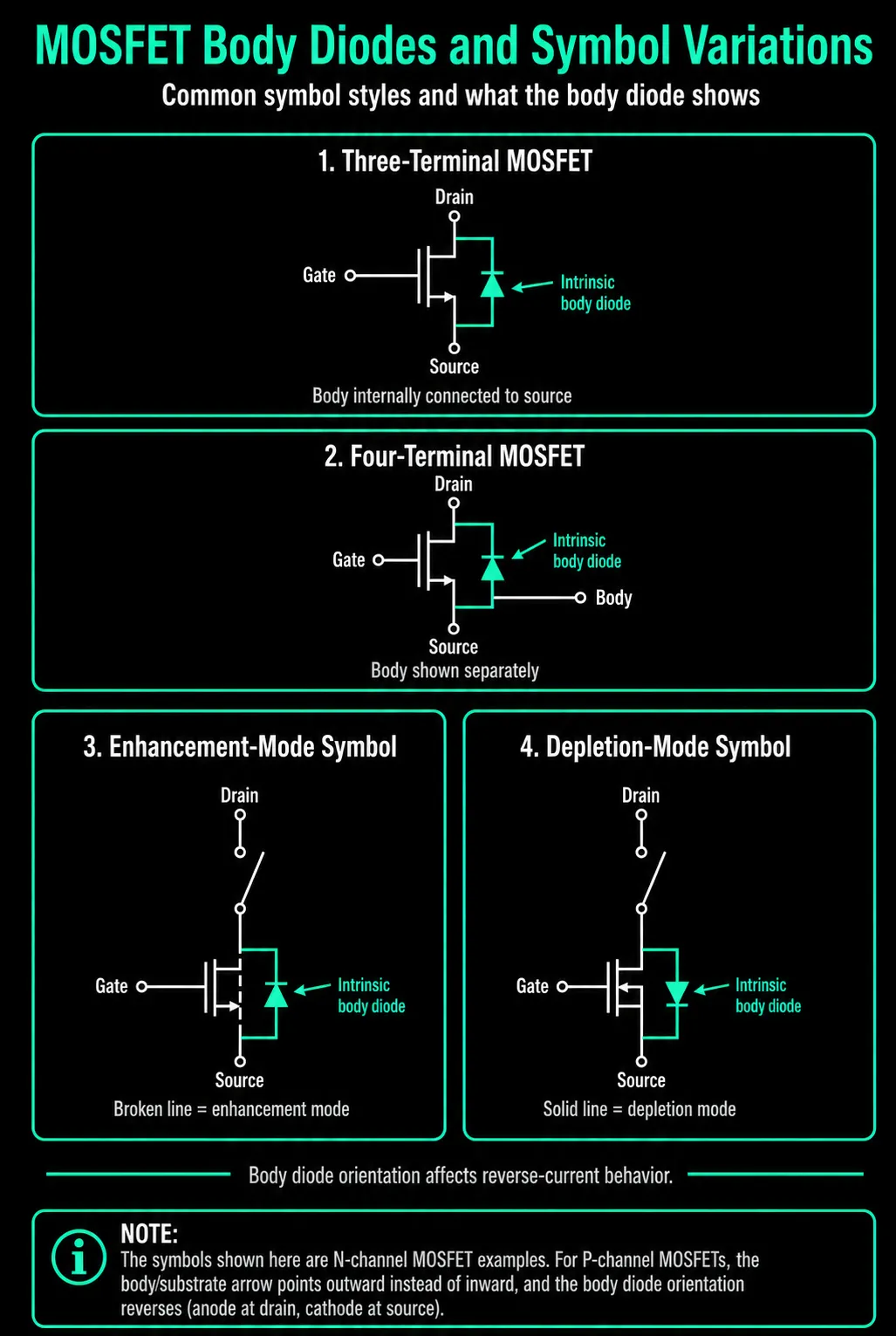

MOSFET Body Diodes and Common MOSFET Symbol Variations

Power MOSFETs contain an intrinsic body diode created during semiconductor manufacturing. The body diode MOSFET representation affects reverse-current behavior. Such diode orientation dictates circuit design in motor drivers, power converters, and reverse-polarity protection circuits. A standard three-terminal drawing connects the body internally to the source. Conversely, four-terminal symbols display the body separately. Furthermore, an enhancement mode MOSFET symbol utilizes a broken line to represent the conductive channel, whereas depletion-mode symbols utilize a solid line.

Common Symbol-Reading Mistakes and How to Verify a Component

Avoiding errors during schematic capture requires rigorous validation. Common mistakes include:

• Confusing source and drain terminals.
• Misidentifying emitter arrow direction.
• Assuming symbol placement matches physical package pin order.
• Ignoring intrinsic body diode orientation.
• Treating NPN and NMOS components interchangeably.
• Utilizing unverified custom-library graphical assets.
• Failing to consult manufacturer datasheets.

Symbol Verification Checklist

How Modern PCB Tools Support Symbol Management

Modern PCB platforms like Flux help teams connect schematic symbols with footprints, datasheets, and component metadata, reducing pin-mapping errors. Such platforms enable reusable schematic symbols, shared libraries, and collaborative schematic reviews. Consequently, engineers maintain accurate symbol revision history across all hardware projects. Accurate transistor schematic symbol interpretation forms the foundation of reliable hardware engineering. Try Flux now to synchronize a chosen MOSFET symbol with verified footprints, component metadata, and real-time collaboration tools.
