How to Recognize Diode Symbols: Essential Knowledge for Electronics Enthusiasts
Share

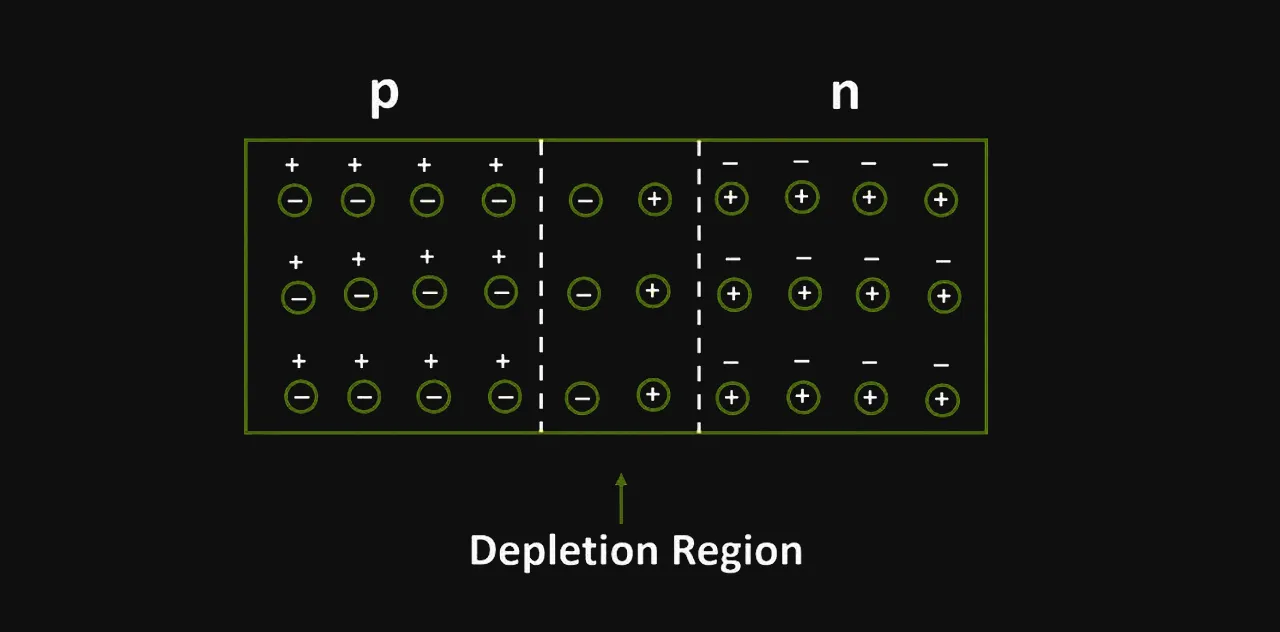

A diode, fundamentally a PN junction, permits current to flow primarily in one direction. It consists of two different doped semiconductor regions -- an N doped and a P dope region -- joined together, forming a PN junction.
Its electrical signal is characterized by allowing easy current flow in the forward direction, while significantly impeding it in the reverse. This unique property is visually represented by an arrow, pointing in the allowed direction of current flow, and a line indicating the barrier for reverse flow.
Identifying a diode in a circuit involves looking for a component with two terminals: the anode and the cathode. The anode is marked by the arrowhead in the diode symbol, pointing towards the cathode, marked by the vertical line. Physical diodes often have a band on the cathode side. In schematics, diodes are also marked with designators like ‘D’ followed by a number (e.g., D1, D2).
Diodes serve myriad purposes in electronics. Their primary function is to enable unidirectional current flow, making them crucial for tasks like rectification – converting alternating current (AC) to direct current (DC). Specific diode types, such as the Zener diode, offer voltage regulation by maintaining a constant voltage over a range of currents. Varactor diodes (varicaps) change capacitance based on the applied voltage, useful in tuning circuits. Meanwhile, Schottky diodes, known for their low forward voltage drop, excel in fast-switching applications.
The function of a diode is primarily to control the direction of current flow in a circuit. Besides this, diodes have specialized functions based on their type:
A rectifier's core purpose is to convert AC to DC. In electronic circuits, this is crucial for powering devices that require stable DC voltage. Rectifier diodes are specifically designed for this task, efficiently handling high currents and voltages. Rectifiers are essential in power supplies, battery charging systems, and are integral to the functioning of electronic devices ranging from smartphones to industrial machinery.
In an automotive alternator, the rectifier converts the AC generated by the alternator into DC to charge the battery and power the electrical system. It typically employs a set of diodes arranged in a bridge configuration. The alternator generates three-phase AC, which the diode bridge rectifies into a smoother DC output. This process is vital for maintaining the battery’s charge and ensuring a consistent power supply to the vehicle's electrical systems.
Understanding diode symbols and their functions is a critical aspect of electronics. From simple rectification tasks to complex frequency tuning, diodes play pivotal roles in various applications. Recognizing these symbols not only aids in circuit analysis but also enriches the understanding of how electronic components interact to perform diverse and sophisticated functions. Whether it's a Zener diode stabilizing voltage or a laser diode in an optical communication system, each diode type brings unique capabilities to the vast and intricate world of electronics.
