Pi Filters Explained: Design, Components & Applications

Quick Answer: A pi filter is a three-element passive filter arranged in the shape of the Greek letter pi. A common low-pass version uses a capacitor, an inductor, and a second capacitor. The filter reduces power-supply ripple and high-frequency noise, but source impedance, load impedance, resonance, component ratings, and PCB layout must all be considered for proper operation.

Key Takeaways

• A pi filter is a three-element passive circuit, typically arranged as a capacitor-inductor-capacitor network, designed to provide a stronger low-pass response than a single component for reducing power-supply ripple.
• Selecting the correct components requires checking parasitic elements and derating curves, such as an inductor's saturation current or a ferrite bead's impedance-frequency profile under DC bias.
• Proper PCB layout dictates keeping high-frequency current loops short, which modern electronics design platforms facilitate by connecting schematic data directly to board placement.

What Is a Pi Filter, and How Does It Work?

Engineers often face challenges when removing high-frequency noise from sensitive analog or digital power rails. A single bypass capacitor does not always work. Consequently, adding additional reactive elements creates a steeper frequency roll-off.

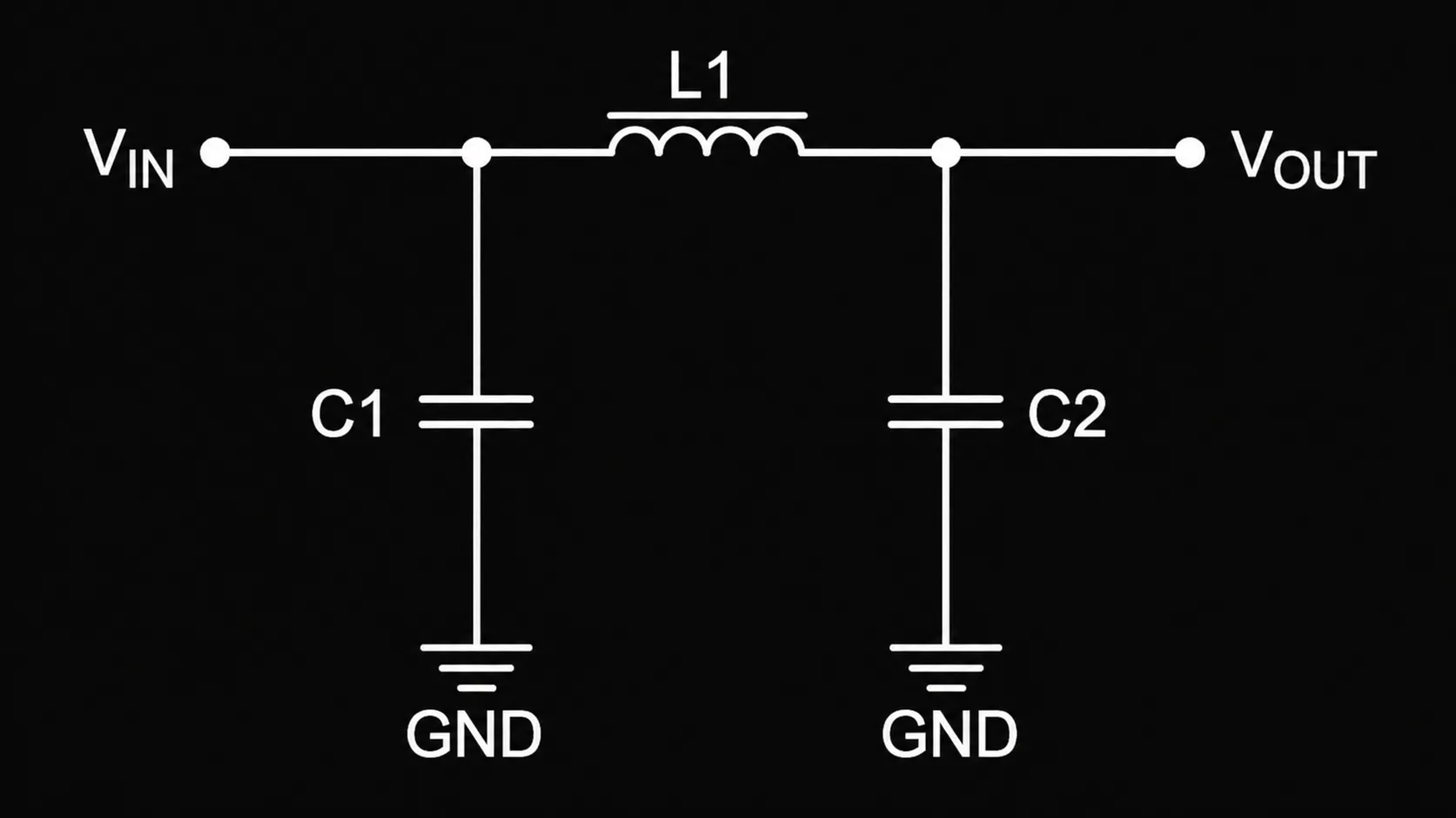

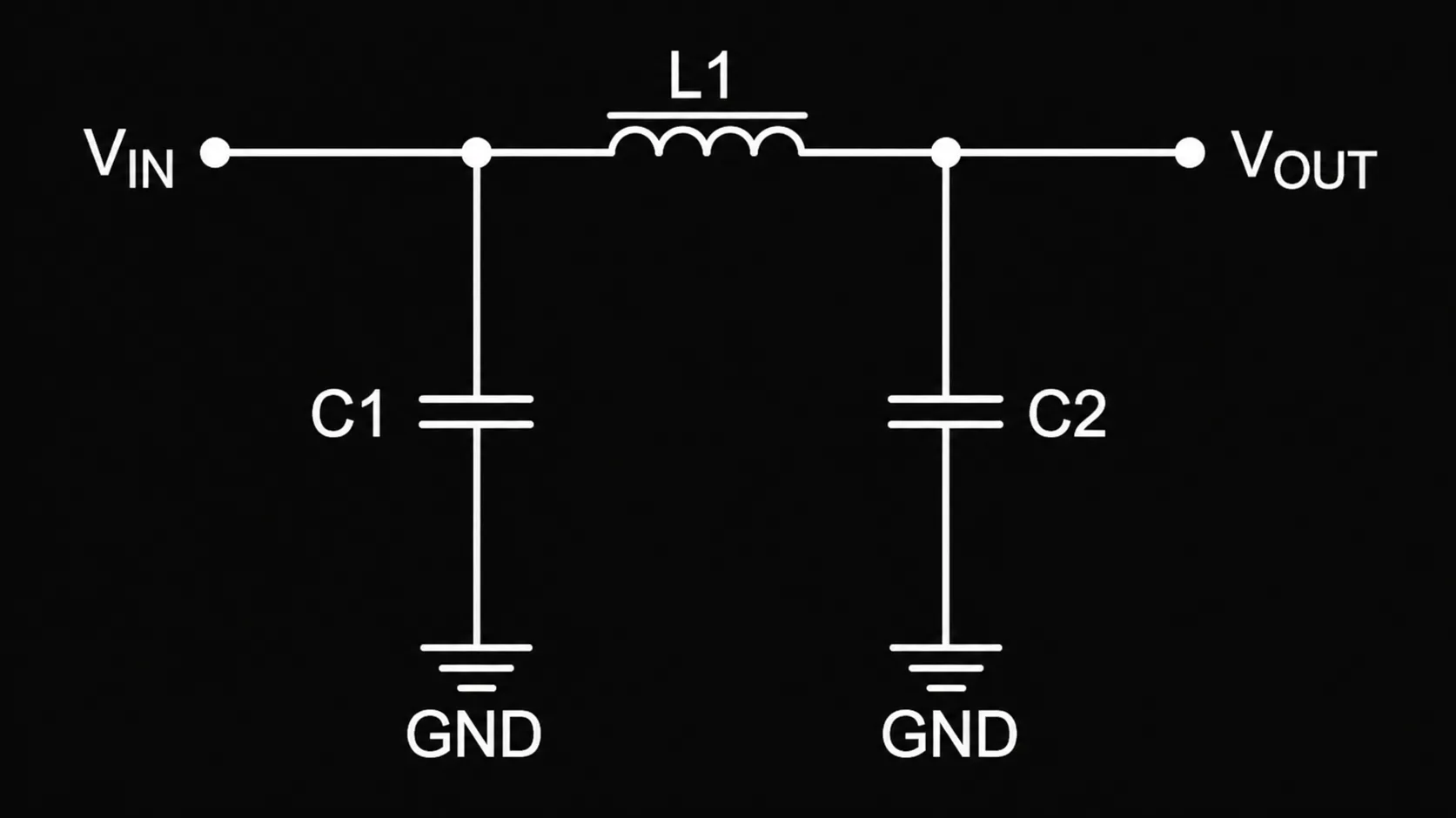

The most common topology for such a task is the capacitor-inductor-capacitor (CLC) network. In a schematic drawing, the circuit looks exactly like the Greek letter pi (π). To understand the mechanics, engineers must examine how each part behaves within the circuit:

• Capacitors shunt high-frequency noise to ground.
• The series inductor impedes rapid current changes.
• Inductive reactance goes up with frequency.
• Capacitive reactance goes down with frequency.

Working together, the entire network creates a stronger low-pass response than a single component. However, real performance depends heavily on source impedance, load impedance, equivalent series resistance (ESR), and parasitic trace elements. Therefore, characterizing the exact noise-current path remains a necessary step for hardware engineers.

Common Pi Filter Topologies and Applications

Hardware engineers must choose a specific topology for their filtering network based on the noise profile and load requirements.

For instance, the standard CLC topology offers strong power and electromagnetic interference (EMI) filtering. Such a setup has low DC loss. However, the LC combination presents a potential resonance risk if not properly damped. Alternatively, a CRC (capacitor-resistor-capacitor) topology offers easier damping and works well for lower-current circuits, though the series resistor introduces a voltage drop.

Engineers apply these distinct topologies across various domains:

• Switching-regulator input and output filtering
• Analog rail isolation
• RF supply filtering
• Conducted EMI reduction
• Automotive and industrial power inputs

Pi Filter Topology Comparison

How to Select Pi Filter Components

Proper component selection ensures the filter blocks noise without burning up or causing instability. Relying purely on nominal datasheet values usually yields surprises on the test bench.

Inductor vs Ferrite-Bead Comparison

Resonance, Damping, and Regulator Stability

Low-loss CLC networks can create a high-Q resonance, meaning the LC network stores energy efficiently and exhibits a sharp, narrow peak in its frequency response with very little natural damping. The resonance might amplify noise instead of reducing the interference. When an undamped filter hits the resonant frequency, the voltage spikes, potentially damaging downstream components.

Additionally, input filters can interact with switching-regulator control loops. Middlebrook's stability criterion states that the output impedance of the input filter must remain much lower than the input impedance of the following converter. Failing to meet Middlebrook's criterion destabilizes the switching regulator, leading to oscillation.

To mitigate resonance, engineers employ various damping options:

• Relying on capacitor ESR provides natural, albeit poorly controlled, damping.
• Adding a series damping resistor works but wastes power.
• Implementing an RC damping branch damps the peak without introducing DC loss.
• Using a lossy ferrite bead reduces the Q factor.

Consequently, comparing a damped and undamped frequency response during simulation reveals precisely how much resonance threatens the circuit.

PCB Layout Guidelines for Pi Filters

A theoretically perfect schematic can perform poorly if the layout allows noise to bypass the network. Keeping high-frequency current loops small represents the foundation of good electromagnetic compatibility (EMC) design.

Specifically, place capacitors close to the source and the load. Use short, wide connections to minimize parasitic trace inductance.

Further layout guidelines include:

• Connect the capacitors directly to a low-impedance ground plane using multiple vias.
• Ensure the operating current passes through the series element rather than flowing past the component.
• Separate the noisy and clean sides of the board physically.
• Avoid creating shared return paths that inadvertently bypass the filter.
• Keep switching nodes away from the clean side of the layout.

How to Validate Pi Filter Performance

Designers must validate performance through simulation and physical measurement rather than relying solely on ideal formulas. Using circuit simulation tools can quickly highlight potential resonance peaks.

On the physical bench, oscilloscope ripple measurement confirms whether the time-domain noise meets specifications. Moreover, spectrum analysis and conducted-emissions testing verify compliance with regulatory standards.

During validation, systematically verify the following parameters:

• Insertion loss
• Resonance peaks
• DC voltage drop
• Load response
• Converter stability
• Component temperature

Load-transient testing checks how the network responds to sudden current demands. Additionally, thermal inspection ensures the inductor and capacitors remain within safe temperature limits.

How Modern PCB Tools Support Filter Design

Modern EDA platforms bring the theoretical design process into a practical, collaborative workflow. Hardware teams require environments where component selection directly informs layout constraints.

Flux supports schematic creation, part selection, collaborative review, and layout implementation of power filters in one unified workspace. Instead of isolating the electrical simulation from the physical board, Flux maintains a connected ecosystem of schematics, component libraries, footprints, PCB layout data, simulation results, and collaborative design reviews.

Relevant Flux capabilities include:

• Filter schematic creation: visualize the topology before committing to parts, catching design errors early.
• Real component selection with live datasheet parameters: ensures simulated performance matches real-world part behavior.
• Footprint review and management: prevents mismatched pads and costly fabrication delays.
• Collaborative design review: lets the whole team catch issues before layout rework is needed.
• Connected PCB placement and routing: keeps traces short and tight, preserving the filter's frequency response.
• Built-in revision history: makes it easy to track changes and roll back problem revisions.

Consequently, schematic, power, and layout engineers review the exact same filter design. Such an environment keeps component data, footprint dimensions, and PCB context perfectly connected.

Designing a reliable pi filter requires carefully balancing component selection, damping, and PCB layout. Flux provides an intuitive, browser-based EDA platform where hardware teams can concurrently collaborate on schematic capture, part selection, and board routing. Start building your next power supply pi filter in Flux today to ensure the design is precise, stable, and ready for manufacturing.
