Capacitor Symbols Explained: Types, Polarity, and Schematic Use

The capacitor is a two-terminal electronic component that stores electrical energy in an electric field. When reading electronic schematic symbols, engineers should identify different capacitor types to understand the underlying circuit behavior.

A specific schematic symbol reflects the given capacitor type, electrical polarity, international drafting standard, and specific CAD library conventions. Understanding the differences in symbols ensures hardware teams select the appropriate physical components. This guide provides a visual reference to help hardware designers understand common capacitor symbols and verify component placement before starting a PCB layout.

Key Takeaways

• A standard capacitor symbol visually depicts two parallel plates storing electrical energy.
• Recognizing the exact difference between a non-polarized capacitor symbol and a polarized capacitor symbol prevents catastrophic reverse-voltage failures during hardware testing.
• Schematic symbols map and electrical logic do not dictate the physical package or printed circuit board footprint.

What Does a Capacitor Symbol Look Like?

The basic capacitor schematic symbol illustrates the internal physics of the component. The drawing shows two parallel lines separated by a small gap, indicating two conductive plates separated by an insulating dielectric material. Terminals connect to each plate, forming the two connection points for the circuit.

Some capacitors are polarized, meaning their positive and negative terminals must be connected in the correct orientation. In an electrolytic capacitor, for example, a thin oxide layer formed on the anode acts as the dielectric, while the electrolyte forms part of the cathode structure. Reversing the applied voltage can damage this dielectric layer, causing increased leakage current, heating, and potentially capacitor failure.

Different regions and engineering standards utilize slightly different graphical conventions. The IEEE standard (common in North America) uses two parallel horizontal or vertical lines. The IEC standard (common in Europe) sometimes depicts capacitors as narrow open rectangles.

Alongside the graphic, a standard capacitor symbol includes important text annotations:

• Reference Designator: Usually begins with the letter "C" followed by a number (e.g., C1, C14).
• Capacitance Value: Written next to the designator, indicating the storage capacity in farads (e.g., 100nF, 4.7µF).
• Voltage or Dielectric Notes: Additional text may specify the maximum voltage rating (e.g., 50V) or the dielectric material class (e.g., X7R, C0G).

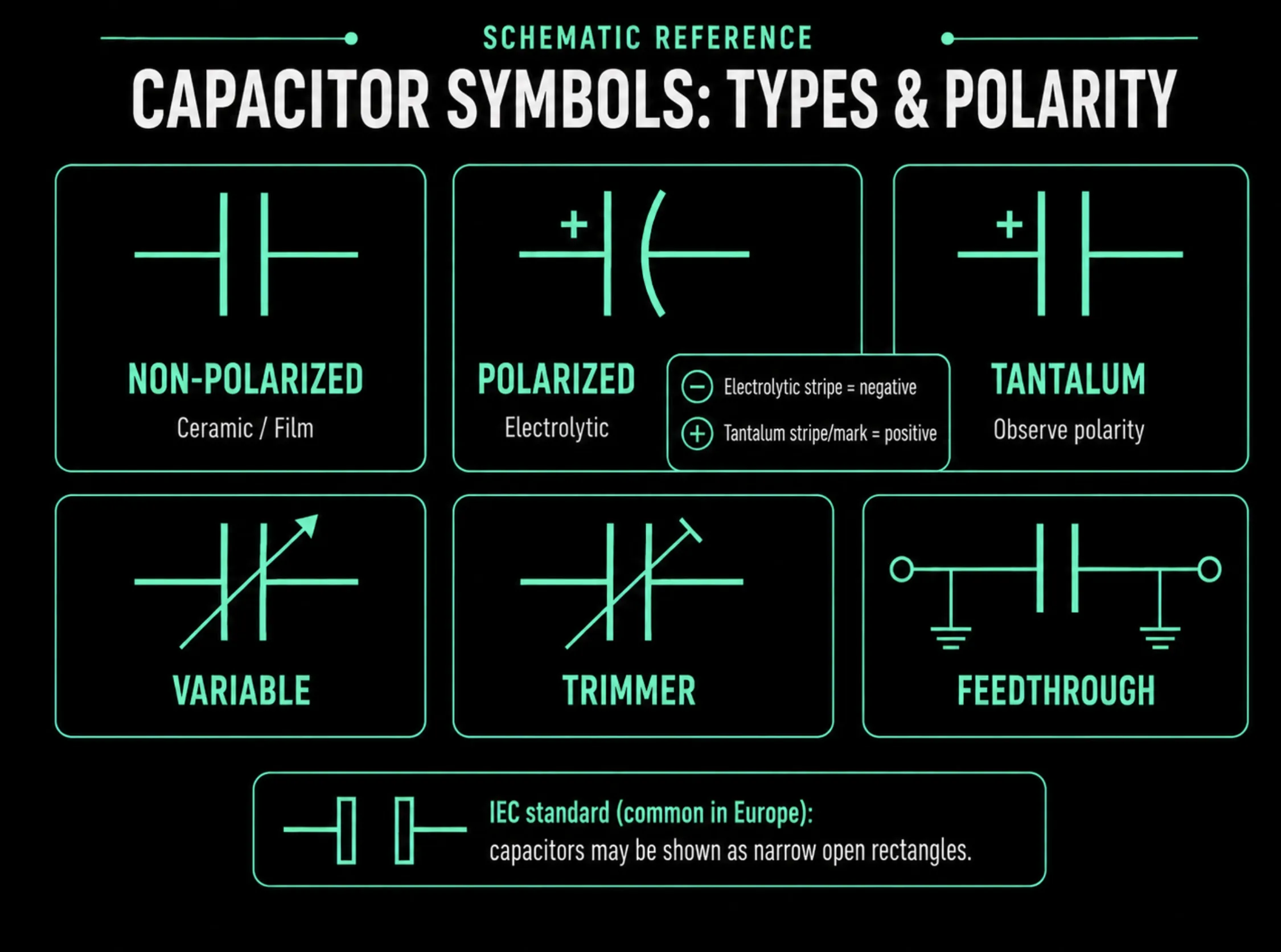

Capacitor Symbol Quick Reference

Polarized vs Non-Polarized Capacitor Symbols

Selecting the correct component requires distinguishing between polarized and non-polarized devices. Installing a polarized capacitor backward leads to dielectric breakdown, short circuits, and physical component rupture.

Non-Polarized Capacitors

A non-polarized capacitor symbol indicates the component can connect to the circuit in any direction. Standard AC circuits and high-frequency data lines require non-polarized parts. A ceramic capacitor symbol and a film capacitor symbol fall into this category. The schematic drawing uses two identical straight, parallel lines. Hardware designers frequently use multilayer ceramic capacitors for high-speed decoupling and filtering where orientation does not matter.

Polarized Capacitors

A polarized capacitor symbol explicitly dictates the required voltage orientation. The positive terminal (anode) must always connect to a higher voltage than the negative terminal (cathode).

An electrolytic capacitor symbol typically displays one straight line representing the positive terminal and one curved line representing the negative terminal. Modern CAD libraries also place a plus sign (+) immediately adjacent to the positive pin. Engineers use aluminum electrolytic parts for bulk power supply smoothing due to high capacitance values.

Similarly, tantalum capacitors require strict polarity observance. While some EDA libraries use the standard curved-line drawing for tantalums, other libraries draw a standard parallel-line symbol and add a plus sign next to the positive terminal.

Capacitor Technology and Symbol Comparison

Variable and Specialized Capacitor Symbols

Specific RF applications and power filtering circuits require specialized capacitors featuring unique schematic drawings.

Variable Capacitors

A variable capacitor symbol includes a diagonal arrow crossing entirely through the parallel plates. The arrow indicates that the user can tune the capacitance value manually. Engineers use variable capacitors in radio tuning circuits and impedance-matching networks.

Trimmer Capacitors

Trimmer capacitors act as miniature variable capacitors set once during factory calibration. The drawing features a diagonal line passing through the plates, terminating in a flat perpendicular line (forming a T-shape).

Feedthrough Capacitors

Feedthrough components filter high-frequency noise entering a shielded enclosure. The symbol depicts a straight line passing continuously through the parallel plates, indicating the signal passes through the center of the capacitor while the outer body connects to the chassis ground.

Safety-Rated Capacitors (X and Y Class)

Power supplies connected to AC mains utilize safety-rated capacitors designed to fail safely during power surges. The schematic base drawing matches a standard non-polarized capacitor. Safety classifications (X1, X2, Y1, Y2) appear as text annotations or library metadata rather than acting as a universally unique base symbol.

How to Identify Capacitor Polarity

Translating a polarized capacitor symbol into physical PCB assembly requires understanding physical package markings. Physical marking conventions differ drastically between capacitor technologies. Engineers cannot assume all components use identical markings.

Aluminum Electrolytic Capacitors

Through-hole electrolytic components include a prominent stripe printed down the side of the cylindrical casing. The stripe contains minus signs (-) and points directly to the negative lead (cathode). Additionally, the positive lead (anode) is physically longer than the negative lead on a brand-new component.

Tantalum Capacitors

Surface-mount tantalum packages utilize a completely inverted marking convention compared to aluminum electrolytics. A solid printed stripe on one end of a surface-mount tantalum capacitor indicates the positive terminal.

PCB Polarity Indicators

The physical PCB footprint must guide the assembly technician. Designers mark the positive pad using a plus sign (+) on the silkscreen layer. For through-hole footprints, designers frequently use a square copper pad to indicate the positive terminal while using a round pad for the negative terminal.

Assumptions based only on component shape or stripe direction result in assembly errors. As a result, engineers should always verify physical polarity by checking the manufacturer datasheet.

Choosing the Correct Capacitor Symbol and Footprint

A common engineering mistake involves confusing a generic schematic symbol with a manufacturer part number or a physical footprint. A schematic symbol defines electrical connectivity. Notably it does not contain physical geometry. When selecting decoupling capacitors or timing components, designers must link the generic symbol to a specific physical part.

Details Designers Must Verify

Before finalizing a schematic, hardware teams must verify specific metadata attached to the symbol:

• Capacitance and Tolerance: Ensure the value meets circuit requirements.
• Voltage Rating: The component must safely handle expected peak voltages.
• Dielectric Material: Temperature coefficient dictates stability (e.g., C0G vs X7R).
• Polarity: Confirm the schematic symbol matches the physical part polarity.
• Physical Package: Map the symbol to an exact metric or imperial package size (e.g., 0402, 0603).
• Pad Numbering: Ensure schematic pin 1 maps correctly to footprint pad 1.
• Temperature Rating: Confirm the specified operating temperature range covers the expected board and environmental conditions.

PCB Design Verification Checklist

Cloud-based EDA platforms like Flux streamline the component selection process. Engineers utilizing AI-assisted circuit design tools can identify correct symbols, verify attached datasheets, and assign accurate physical footprints in one unified workflow. Try Flux to find the correct capacitor symbol, verify component data, and assign the corresponding PCB footprint within the same hardware design environment.
