What Makes a Perfect PCB Design Prompt

Here’s a practical guide to writing prompts that get quality results from Flux. We’ll talk about the anatomy of a good prompt and how you can use different LLMs to come up with a great prompt.

Why the first prompt matters

Models behave like fast, literal collaborators. They do best when you hand them the same things you’d give a new teammate: context, constraints, and a definition of “done.” OpenAI, Anthropic, and Microsoft all emphasize the same fundamentals; be specific, provide context and examples, and iterate because models respond measurably better to concrete instructions than vague goals.

For hardware, that specificity translates into;

• Better plan execution from the AI agent
• Detailed functional blocks design
• Comprehensive and targeted research
• Better part selection and
• Safer net connections plan

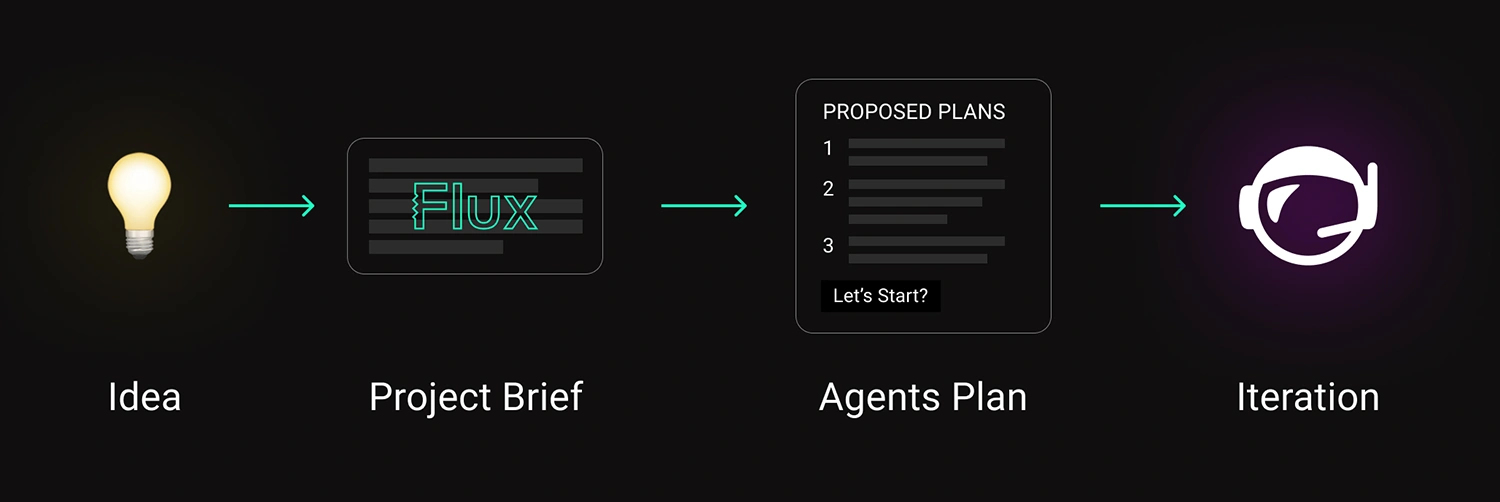

The new workflow

PCB design is now starting the same way, with a sentence that sets direction. The right workflow turns that sentence into a plan, and that plan into a real board.

1. Idea - If you are reading this, you probably have an idea you want to realize, sweet!
2. Generate a brief - Brainstorm with Flux (or other general LLMs) to create a comprehensive project summary.
3. Agent - Ask flux to help get you started with the project by pasting in the project brief created.
4. Iteration - Flux generates a plan and you can begin execution after you are comfortable with the plan proposed by the agent.

The anatomy of a great PCB Design prompt

A strong prompt has structure. You don’t need to overthink it — just fill in the blanks like you would for a teammate’s design request.

1. Context: What are you building? Give a short, high-level description.
   Example: “I’m designing a small, battery-powered air quality monitor for indoor use.”‍
2. Core Functions: What must it do?
   “It needs to measure CO₂, temperature, and humidity, display readings locally, and send data over Wi-Fi.”‍
3. Power Model: How’s it powered?
   “Powered by a single 18650 Li-ion cell, charged via USB-C.”‍
4. Key Constraints: What limits do you have?
   “Max board size 50×80mm, target BOM under $30, use JLCPCB parts where possible.”‍
5. Interfaces and I/O: What external connections or sensors are involved?
   “Include connectors for an external temperature probe and optional OLED display.”

Once you’ve written that out, you’ll notice something: it’s the same info you’d include in a solid design doc. You’re just telling it to the AI in natural language.

Bad

“Design a PCB to power my sensor node.”

Better

Create a compact, two-layer PCB for a battery-powered environmental sensor that can measure temperature and humidity outdoors year-round.

‍Functions: Step down Li-ion voltage (3.0–4.2 V) to a stable 3.3 V @ 500 mA to power an MCU and BLE module, while maintaining low noise for accurate sensor readings.

Power model: Single-cell Li-ion input with optional USB-C charging and reverse-current protection; system should support sleep modes with minimal quiescent draw.

Key constraints: Total board area ≤ 2 cm²; must use widely available components from LCSC or Mouser; prioritize efficiency (≥ 85%) and long battery life over BOM cost; all parts hand-solderable and suitable for low-volume prototyping.

Interfaces & I/O: I²C bus for sensors, UART header for debugging, JST-PH connector for the battery, and test points for power rails and signal lines.

Try this prompt now

‍

A quick prompt template (steal this)

Replace the bracketed parts, and keep it as one block.

What to leave out for now

• Specific net names and pin-level constraints
• Part numbers that lock the design too early, unless they are truly non-negotiable
• Layout advice, like exact stackups or trace geometry.

Below is a single-block prompt example for an enterprise-style project. Use the structure and adapt the content.

OzCorp’s building a robotic arm for its Kitchen Independence line—assistive gear to help folks with limited mobility cook safely. It’ll live near stovetops, inside semi-sealed enclosures, and handle risky, high-precision tasks. We need a v1 board for early testing—tight stack, safe motion, easy to iterate.

Board should be quiet, cleanable, fault-tolerant, and built with safety-first motor control. Design for real-world abuse, not just the bench.

Requirements:
* Thermal: Run clean near 70°C, layout ready for passive shielding.
* Ingress: Tolerate steam/oil, avoid exposed headers, semi-wipeable.
* EMI: Survive near induction tops; solid filtering and layout.
* Motors: Drive 4–6 steppers or BLDCs w/ encoders, quiet + smooth.
* IO: Temp + proximity sensors; USB-C or UART; room for add-ons.

Primary input will be a 24 V DC external supply—off-the-shelf medical-grade adapter. Budget ~5 A peak, ~2 A continuous for everything. Motors are 24 V BLDCs with integrated drivers, so we don’t need separate gate drive rails.

Rails we’ll need:
* 24 V passthrough for motors
* 5 V rail for sensors, logic level translators, and E-stop handling
* 3.3 V clean rail for MCU and digital IO
* 2.8 V, 1.8 V and 2.3 V analog-only rails for the camera
* No additional rails, however, keep layout flexibility in mind in case we add additional sensing later.

No galvanic isolation needed between motor and logic domains in this rev—common ground is fine as long as noise coupling is controlled. Just prioritize good filtering and separation in the layout.

We’re targeting a higher-end embedded MCU—something with enough headroom for real-time motor control, sensor fusion, and field updates without jumping to a full MPU. Needs to support external memory and camera input via MIPI CSI (basic CV down the line), and ideally has built-in Ethernet MAC with PoE support for hardwired installs.

We’re also dropping in a discrete Zigbee radio—most of the Kitchen Independence line will communicate over a shared Zigbee mesh for interoperability and OTA updates, so we’ll need clean SPI or UART for that interface, plus a decent RF layout budget. USB device is a must, USB host is a nice-to-have. No Linux this rev—we’re keeping it lean and RTOS-friendly.

Try this prompt now

‍

Why this works

This approach resembles a planning meeting rather than a netlist, allowing for a more comprehensive and strategic overview. By defining environment and safety considerations early, it significantly influences and shapes the overall architecture. Additionally, it outlines the rails and interfaces without prematurely committing to specific chips, providing greater flexibility. This method also leaves room for the agent to propose blocks and components that align with and satisfy the project's goals.

Practical tips that improve results

• Longer is fine when it adds clarity, keep it high level and purposeful.
• Use concrete constraints from the real environment, temperature, ingress, EMI.
• Avoid locking nets, pin maps, or exact layout decisions too early, this can confuse the agent and reduce useful options.
• Keep everything in one block for the initial pass, then iterate.
• When you move into Flux, let the tool propose blocks, then refine.

Move from prompt to PCB

Once your requirements are clear, bring them to life. Paste your brief into a new project in Flux, and watch as your AI assistant turns that structured intent into a concrete starting point.

Flux’s AI agent doesn’t replace that balance; it amplifies it. When you give it clarity, it gives you momentum. When you ask better questions, it becomes a sharper collaborator.

Plan like a product team, define clearly, and let the AI handle the first draft of your design.

The future of hardware starts here, open Flux and start your next project today.
