AI Auto-Layout is not just another autorouter—it’s an intelligent assistant that continuously learns and refines its results based on user feedback. If you've ever felt frustrated with traditional auto-routing tools, this guide will show you how to achieve clean, professional layouts with minimal effort. Let’s dive in!

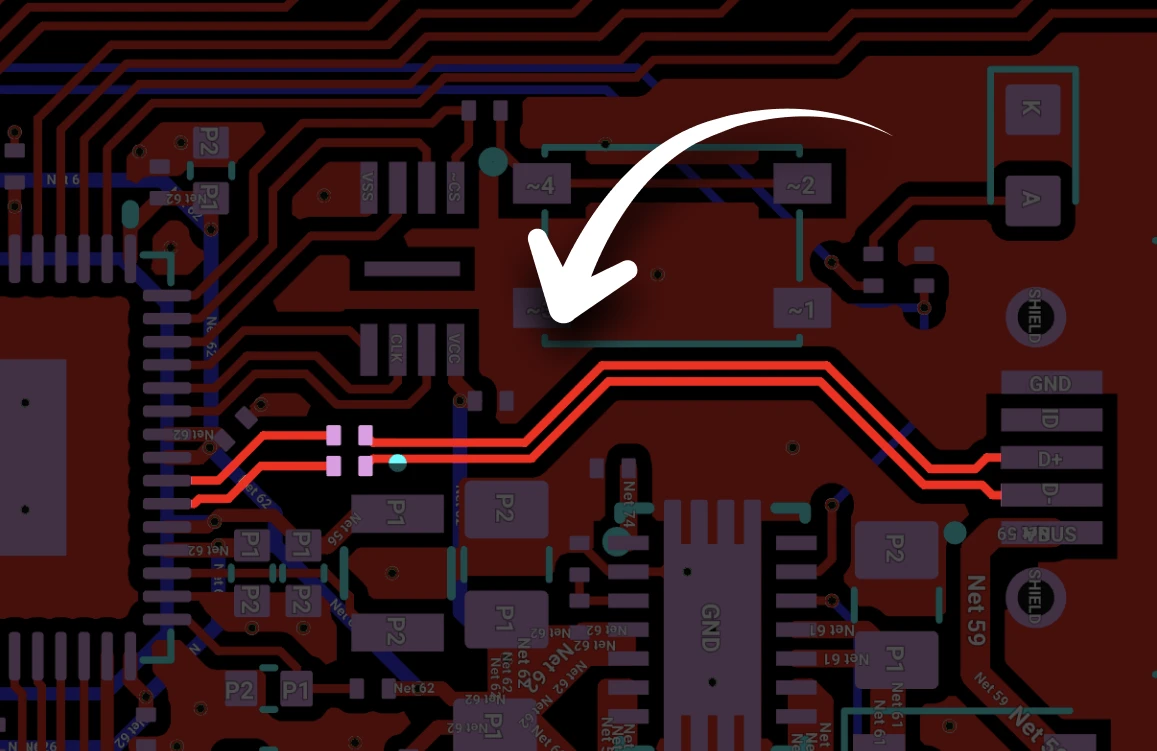

Differential pairs are essential for high-speed designs, ensuring minimal signal distortion and optimal power transfer. Flux's AI Auto-Layout can route differential pairs automatically if your components and nets are correctly configured.
Power integrity is crucial for any PCB design, and AI Auto-Layout incorporates an automatic copper width calculator to optimize power traces efficiently.

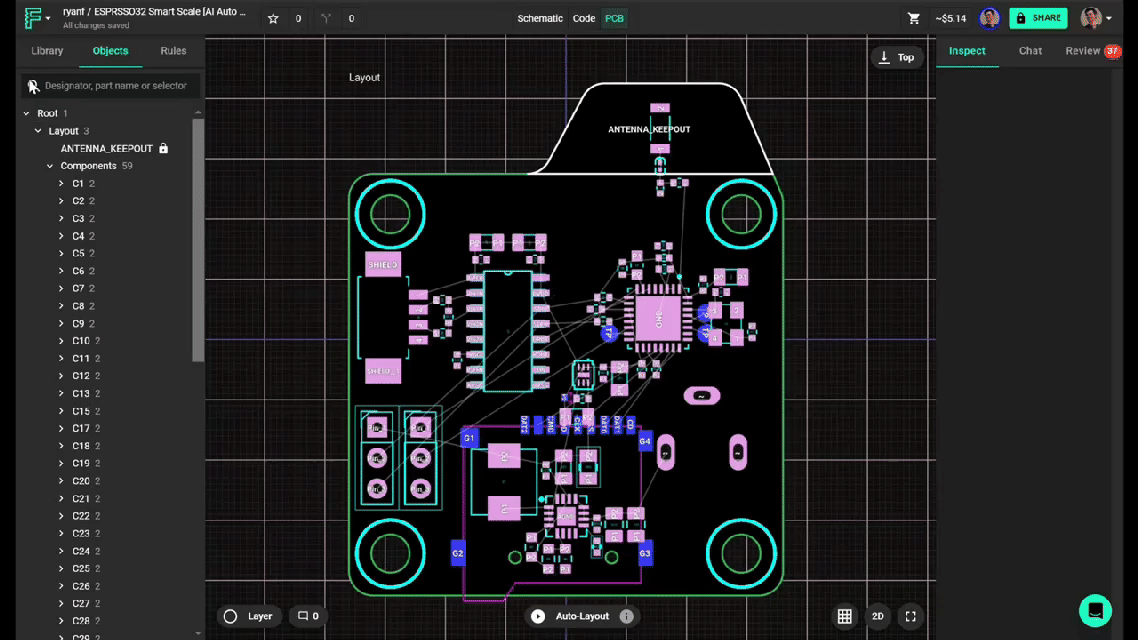

Rule sets in Flux allow you to efficiently apply layout rules across multiple objects using selector-based syntax, making design more consistent and AI Auto-Layout more effective.

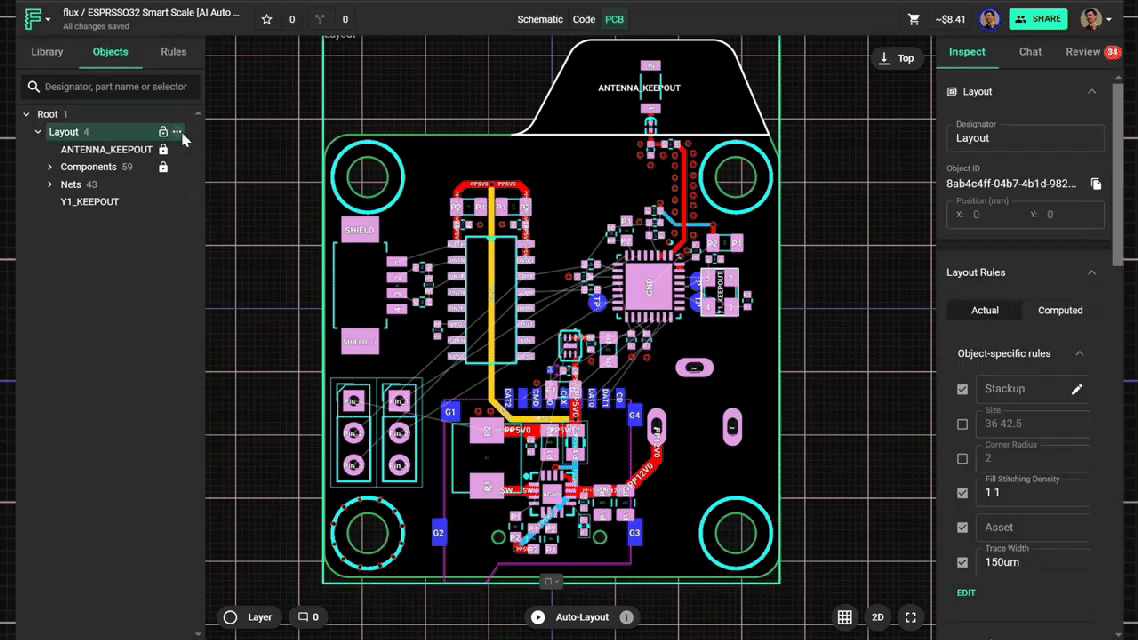

Zones in Flux are a powerful way to define keep-out regions of any shape or size on any layer, allowing you to control where AI Auto-Layout routes traces.

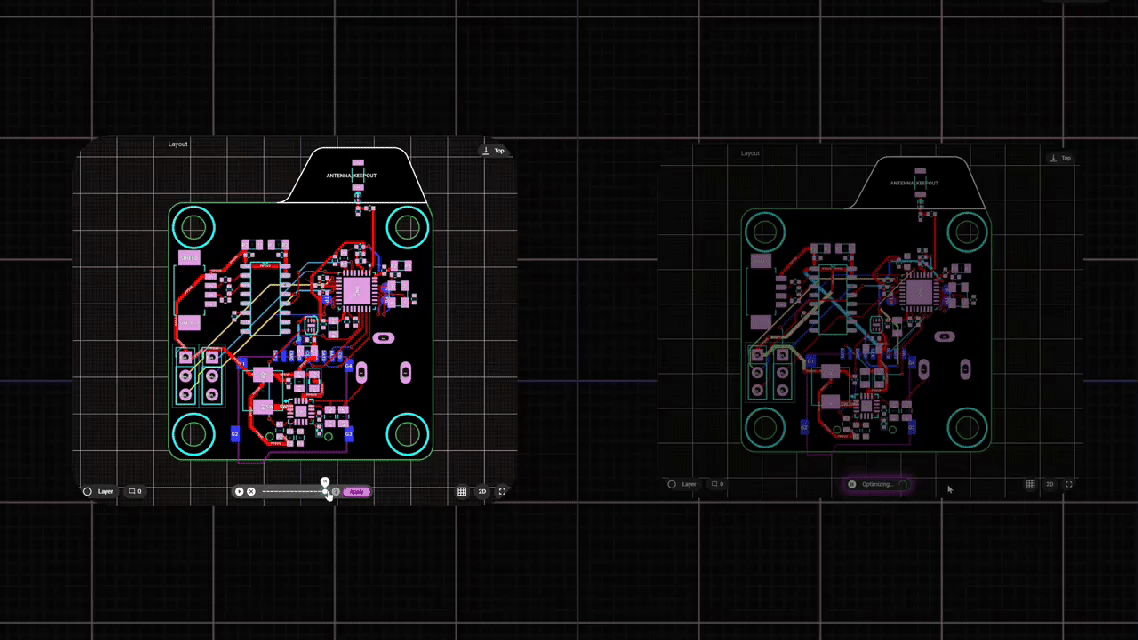

AI Auto-Layout continuously optimizes routing decisions, but for complex boards, it may take longer to converge on an ideal solution. Following these best practices will ensure more efficient routing.
AI Auto-Layout is the fastest-evolving AI-driven PCB design feature in history. We’re actively listening to user feedback and prioritizing enhancements based on real-world use cases. If you haven't tried it yet, now’s the perfect time to experience the future of PCB design.
Get started today and see how AI Auto-Layout can transform your workflow. With continuous improvements rolling out, this tool will only get better—and your designs will too!
