PCB Design History and Revision Management Best Practices
PCB design history tracks how a circuit board changes over time, including what changed, who made the modification, when the event occurred, and why. Historically, engineers relied on manually maintained revision logs, and document archives to track these changes. Today, modern ECAD tools and version control systems automate much of the process, providing greater visibility and traceability. As a result, strong revision management helps teams avoid manufacturing mistakes and maintain accurate design records throughout the hardware development lifecycle.
Key Takeaways
- Accurate PCB design history provides an audit trail for schematic and layout changes.
- Effective PCB revision tracking prevents costly manufacturing errors.
- Cloud-based ECAD platforms simplify collaboration and revision visibility for hardware teams.
What Is PCB Design History?
PCB design history is a complete record of modifications a circuit board undergoes from initial concept to final manufacturing release. Such a record serves as an audit trail for hardware design, logging specific details for every update.
As projects grow in complexity, understanding the PCB version history prevents engineers from guessing why specific layout decisions occurred. A proper history logs the following information:
- Who made a change
- When the change happened
- What changed
- Why the modification was made
- Which revision was released

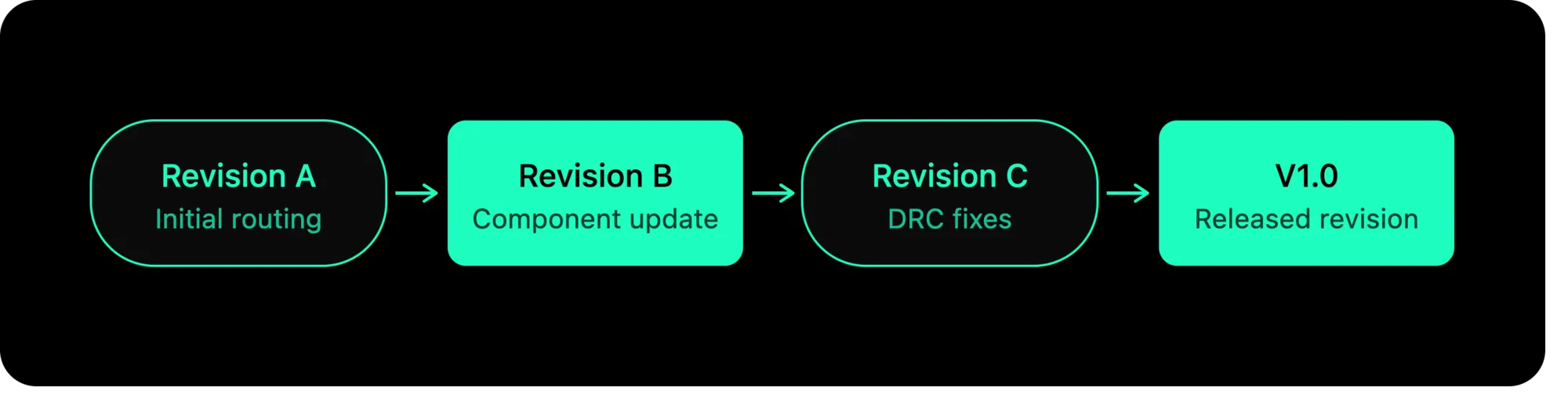

Design History Typical Timeline
Why Revision Management Matters in PCB Design
Printed circuit board designs frequently require multiple iterations before reaching production. Such iterations, known as PCB revisions, affect schematics, the physical layout, bill of materials (BOM), manufacturing files, and assembly documentation. Poor PCB revision tracking introduces high risk into the manufacturing process.
Further, expensive mistakes frequently occur without proper management. Common examples include:
- The manufacturer receives outdated Gerbers.
- The BOM revision fails to match the PCB layout.
- An engineer changes a component footprint without documenting the reasoning.
- The team struggles to identify when a specific routing issue entered the layout.
Revision Tracking vs Version Control vs Change Management
Engineering teams frequently confuse terms related to hardware revision control. The following table defines the specific function for each concept:
| Concept | What It Tracks | Used For |
|---|---|---|
| Revision Tracking | Records officially released versions of a design. | Releasing files to manufacturing (e.g., Rev A to Rev B). |
| Version Control | Tracks incremental changes over time, often continuously. | Day-to-day engineering work, allowing rollback to previous states. |
| Change Management | Defines how modifications are requested, reviewed, and approved. | Structuring engineering workflows, issuing ECOs, and formalizing approvals. |
How Engineering Change Management Works
Implementing a formal hardware change management methodology ensures every layout modification undergoes proper review before reaching the fabricator. Standard engineering change management relies on structured documentation, such as the Engineering Change Request (ECR) and the Engineering Change Order (ECO).
Typical Workflow Process
A typical PCB change management workflow includes the following stages:
- Issue Identified: A defect or required feature upgrade is documented.
- Change Requested (ECR): An engineer submits a formal request detailing the proposed schematic or layout update.
- Design Updated: The designer executes the modification.
- Review Completed: A peer or manager verifies the routing, DRC, and BOM.
- Revision Approved (ECO): The change is formally accepted.
- Manufacturing Files Released: New Gerbers and drill files are generated and archived.
PCB Revision Management Best Practices
Establishing a consistent PCB revision management process prevents communication failures between design teams and fabrication houses. Use the checklist below to verify that revision control procedures are in place.
PCB Revision Management Checklist
- Use clear revision naming conventions (e.g., numeric for prototypes, alphabetic for production).
- Document every meaningful change within the schematic and layout files.
- Keep schematic, layout, BOM, and manufacturing files aligned.
- Maintain release notes for each approved revision.
- Link design changes to specific issues or review comments.
- Avoid overwriting historical versions; archive older iterations safely.
- Confirm manufacturers receive the correct revision package.
Common PCB Revision Management Mistakes
Hardware teams frequently encounter production delays due to poor file management. Common errors include:
- Using ambiguous filenames such as “final_final_v3”.
- Losing track of the exact Gerber files sent to manufacturing.
- Updating the physical layout without updating the associated documentation or BOM.
- Failing to document the reason for specific component replacements.
- Mixing prototype files and production files in the same directory.
How Modern PCB Tools Improve Design Traceability
Maintaining a reliable change log PCB design requires an integrated toolset. Modern cloud-based tools such as Flux help hardware teams maintain a clearer PCB design history by keeping collaboration, revisions, and design context in one shared workspace.
Flux provides a shared source of truth, giving teams instant visibility into project modifications. Such an environment reduces reliance on complex file naming conventions. Built-in collaboration around changes allows engineers to conduct design reviews directly on the layout, ensuring complete alignment before manufacturing handoff. To establish a reliable PCB design history and modernize hardware workflows, try Flux today.
FAQs
PCB design history is the complete record of all changes applied to a circuit board over time, including author details, timestamps, and modification reasons.
PCB revision tracking involves monitoring and recording the officially released iterations of a hardware project to ensure fabrication houses receive accurate files.
Standardizing naming conventions involves using numeric characters for early prototypes (e.g., V0.1, V0.2) and alphabetic characters for official production releases (e.g., Rev A, Rev B).
Hardware change management is the formal procedure for requesting, reviewing, and approving schematic or layout updates before releasing new manufacturing files.
Version control tracks continuous, day-to-day engineering updates. Revision control tracks the major milestones approved for fabrication or assembly.
Accurate revision management guarantees fabrication houses build the correct board, preventing wasted capital on outdated layouts or incorrect component footprints.
